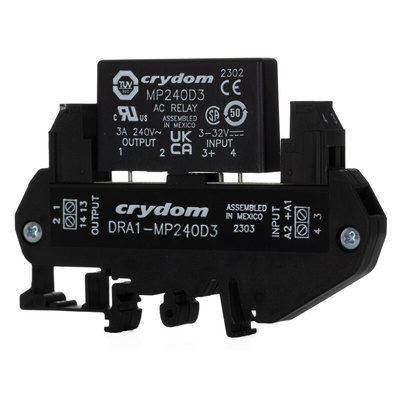

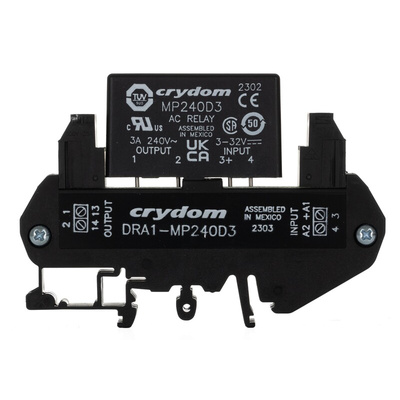

DRA1-MP240D3, Sensata / Crydom DRA Series Solid State Interface Relay, 32 V Control, 3 A rms Load, DIN Rail Mount, Реле

Sensata | Crydom Solid-State Interface Relay, Zero-Cross Switching Type, 24 to 280V AC Output Voltage Range - DRA1-MP Series - DRA1-MP240D3

When you need to switch circuits fast, trust this solid-state interface relay from Sensata | Crydom to get the job done without delay. Thanks to a low maximum turn-on time of 8.33ms, it switches power to your equipment in the blink of an eye. It has no moving parts to wear out, so you can rest assured it will last for a long time. It's a fine choice for industrial automation equipment, production lines and engineering workshops.

Features & Benefits

• Rated load current of 3A for use in low-power applications
• Mounts to a DIN rail for easy installation
• Compact dimensions of 89.6 (L) x 10 (W) x 62.2mm (H) to maximise space on your rail
• Low off-state leakage current of 5mA for energy efficiency

What type of switching does this relay use?

The relay uses zero-cross switching, meaning that it detects when the load voltage is close to 0V before making the switch. This means it generates less electrical noise to prevent interference with your sensitive equipment.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
