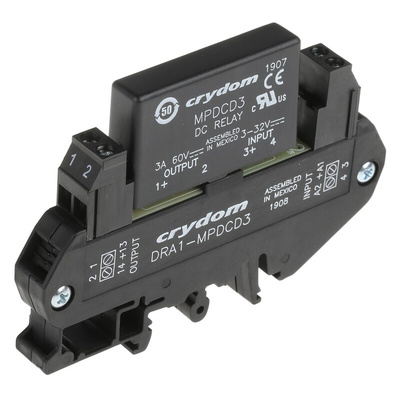

DRA1-MPDCD3, Sensata / Crydom DRA1-MP Series Solid State Interface Relay, 32 V dc Control, 3 A Load, DIN Rail Mount, Реле

DIN Rail Mount - DRA1-MP Series

10mm single channel DIN rail mount SSR assembly
DC ratings 60 VDC and 3 A
3-32 Vdc control
Cage style screw terminals for easy connection
Fits standard 35mm DIN rail

Sensata | Crydom Solid-State Interface Relay, SPNO Contact Configuration, 3 to 60V DC Output Voltage Range - DRA Series - DRA1-MPDCD3

This solid-state interface relay from Sensata | Crydom lets you safely transfer an electrical signal between circuit components that can't be directly connected. It features galvanic isolation between the input and output circuits, making it a good choice for use in high-voltage applications. As it doesn't have any moving parts, there's minimal risk of wear and tear for reduced maintenance needs and an increased service life. It's commonly used for applications such as PLCs, X-ray equipment and large radio-electronic installations.

Features & Benefits

• Designed for DIN rail mounting for ease of installation
• Cage-style screw terminals provide straightforward, secure electrical connections
• Isolation voltage of 4000Vrms to minimise the risk of damage in the event of a voltage spike
• Wide output voltage range of 3 to 60V DC for use in low-power applications

Is this product suitable for use in harsh environments?

Yes, this relay has a wide operating temperature range between -40°C and +80°C, so it can withstand use in demanding industrial environments.

DC Switching
