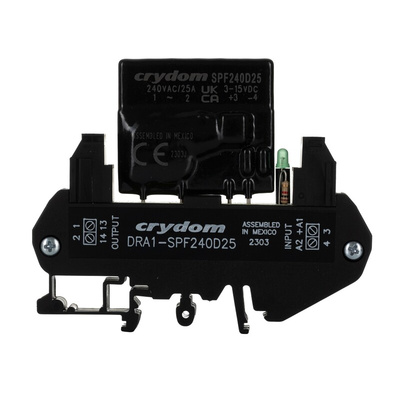

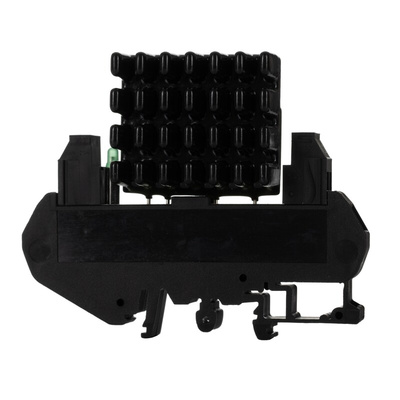

DRA1-SPF240D25, Sensata / Crydom DRA1 SPF Series Solid State Interface Relay, 15 V dc Control, 10 A rms Load, DIN Rail Mount, Реле

Sensata | Crydom Solid-State Interface Relay, SPST Contact Configuration, Screw Terminals - DRA1-SPF Series - DRA1-SPF240D25

If you're looking for a long-lasting switching solution that'll slot right into your setup, pick this solid-state interface relay from Sensata | Crydom. Its compact dimensions of 89.6 (L) x 22.9 (W) x 69.9mm (H) mean it won't take up much space. As it switches without any moving parts, this unit is resistant to wear and lasts longer than an electromechanical relay. You can mount it on a DIN rail for installation in a snap. You'll find a relay like this one used in HVAC systems, lighting control and domestic wiring.

Features & Benefits

• Wide operating voltage range of 12 to 280V AC for versatility
• Cage-style screw terminals for a secure electrical connection
• Safe for use in harsh environments, thanks to its broad operating temperature range between -30°C and +80°C
• Maximum turn-on and turn-off time of half a cycle for lightning-fast switching

What's the off-state leakage current of this solid-state interface relay?

The relay has a low off-state leakage current of just 0.1mArms, keeping power usage and heat build-up to a minimum.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

DRA1 SPF Series Din Rail Mount Data Sheet

Dra_ Drs series relays and Sockets Brochure

Declaration of Conformity 2014/35/EU

Line Drawing - DRA1 - SPF240D25
