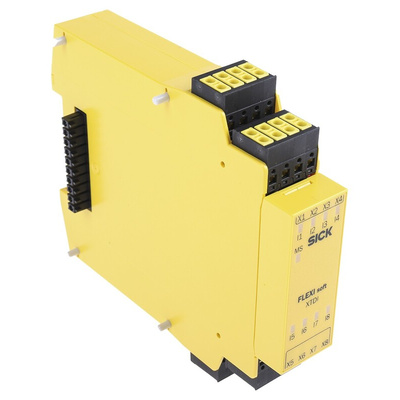

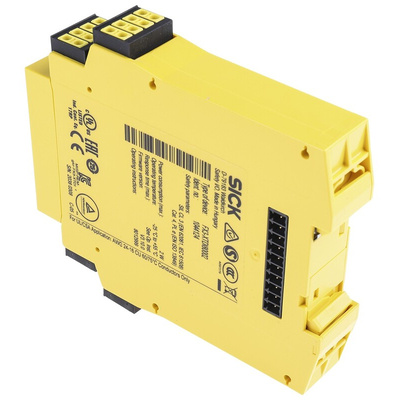

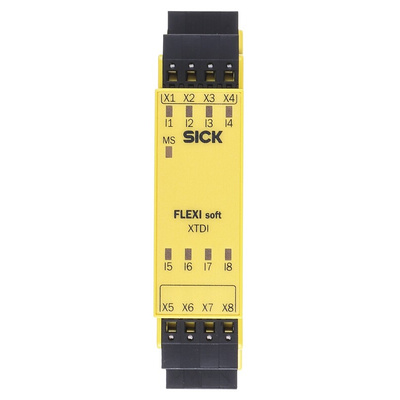

FX3-XTDI80002, Sick Flexi Soft Series Input Module, 8 Inputs, 0 Outputs, 24 V dc, Модуль

Flexi Soft Input Expansion Unit - FX3-XTDI80002

8 safety inputs
8 control outputs (with 2 test pulse generators)
Safety functions: E-stop function; machine control (e.g.PSDI); differentiation between man and material (muting); control modes and operating mode selection
Connects to main system via cable gland
Category 4 (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (IEC 62061), PL e (EN ISO 13849)

SICK I/O Digital Module

The SICK I/O digital module has 8 numbers of input and output terminals. This module has an input supply voltage of 13VDC to 30VDC and an output voltage ranging from 15VDC to 30VDC via FLEXBUS+. This module enables safety functions like E-stop function, machine control (e.g. PSDI), differentiation between man and material (muting), control modes and operating mode selection.

Features and Benefits

8 control outputs (with 2 test pulse generators)
Safety functions
Connects to main system via cable gland
Operating temperature ranges between –25°C and 55°C

Certifications

EN ISO 13849
SIL3 (IEC 61508)
SILCL3 (IEC 62061)
EN ISO 13848
IP20 rated (Enclosure)
CE certified
cULus approved
CCC certified
