V30W-0101000, Sick V300 Series Safety Camera, 1 Beam(s), 2.12m Max Range, Камера

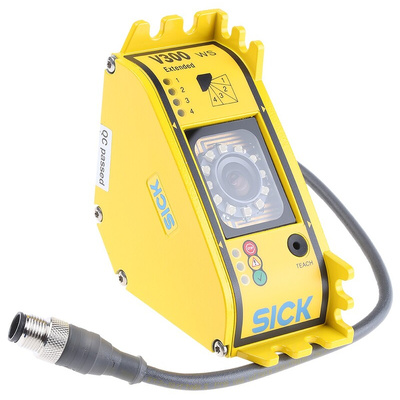

Sick Safety Camera System

The Sick V300 series work station extended is a single beam safety camera system with a 2.12m maximum range for scanning. It has a supply voltage of 24VDC and switching current which ranges between 6mA and 250mA. This system has a male connector M12 with 8-pin as the connection type and the status and diagnostic display are shown by the LEDs. The housing material of the camera system is die-cast aluminium.
Supplied with Including teaching pen, operating instructions on CD-ROM and Quickstart (instructions for quick commissioning)
Note:
A resolution set has to be ordered separately

Features and Benefits

Simple to install, no specialist knowledge or configuration software needed
Intuitive one-button set up
No blind spots
Peak wavelength is 850nm
One system fits all protective field sizes
Components and the evaluation unit are integrated into a single compact housing
Sensor can handle tolerances of several centimetres along the optical axis
Flexible protective field geometries
Automatic alignment
Restart/reset, EDM integrated
2 x 250mA switching outputs
1 x EDM input, 1 x restart interlock input, 1 x teach/sync input
Response time is 20ms
Operating temperature ranges between 0°C and 50°C

Applications

Machine safeguarding
Mining and Quarrying
Factory automation industry
Pharmaceutical industry
Rail and transport

Certifications

CE certified
cULus certified
IP54 (enclosure) rated
IEC 61496
IEC 61508
EN 62061
EN ISO 13849
EN ISO 13849
EN 50178
EN 60068-2-6
EN 60068-2-27
