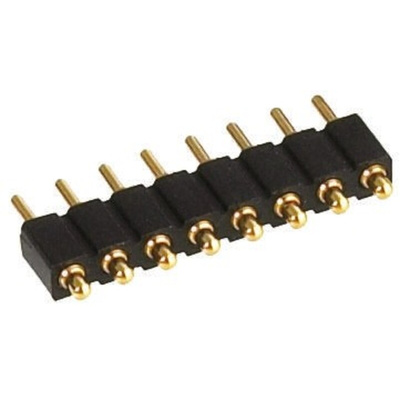

811-S1-012-10-016101, Preci-Dip Straight Through Hole Spring Loaded Connector, 12 Contact(s), 2.54mm Pitch, 1 Row(s), Shrouded

2.54 mm SIL Spring-Loaded Contacts, Through Hole

These Preci-dip SIL 813-S1 Series low resistance modular connectors have spring-loaded contacts (SLC) with through hole mounting into the PCB.

The Height dimension gives the initial height of the spring-loaded contacts
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm

Note

For counterpart SMD SIL Pad Connectors see stock number 702-0360 (straight).

Standards

UL 94V-0

Preci-dip Spring-Loaded Connectors

A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.

Spring loaded connectors Data sheet

811-S1-NNN-10-016101 Datasheet
