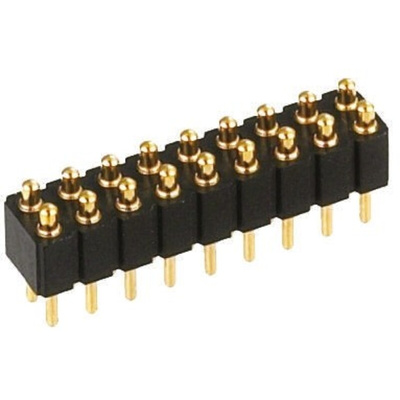

813-S1-020-10-015101, Preci-Dip, 20 Way, 2 Row, Straight Spring Loaded Connector

7020424
Номер производителя: 813-S1-020-10-015101Производитель: Preci-Dip
Цена за шт.
2613.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

2.54 mm DIL Spring-Loaded Contacts,Through Hole

These Preci-dip DIL 813-S1 Series low resistance modular connectors have spring-loaded contacts (SLC) with through hole mounting into the PCB.

The Height dimension gives the initial height of the spring-loaded contacts
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm

Note

For counterpart SMT DIL Pad Connectors see stock number 702-0420 typical

Standards

UL 94V-0

Preci-dip Spring-Loaded Connectors

A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.

Техническая спецификация
pdfSpring Loaded Connectors
Защищенный/Незащищенный:
Shrouded
Кол-во контактов:
20
Количество рядов:
2
Концевая заделка:
Припой
Материал контактов:
Латунь
Номинал тока:
3.5A
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Тип монтажа:
Сквозное отверстие
Шаг:
2.54мм
