Keysight Technologies N287XA Series N2870A Oscilloscope Probe, Passive Type, 35MHz, 1:1, BNC Connector, Щупы для осциллографа

7023895
Номер производителя: N2870AПроизводитель: Keysight Technologies
Цена за шт.
121290.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

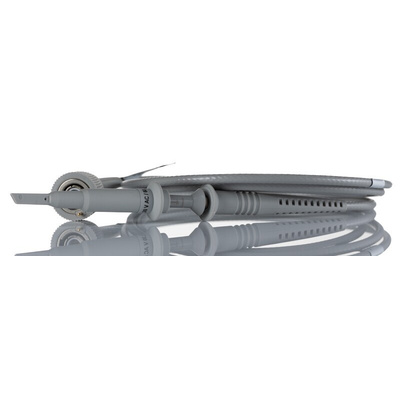

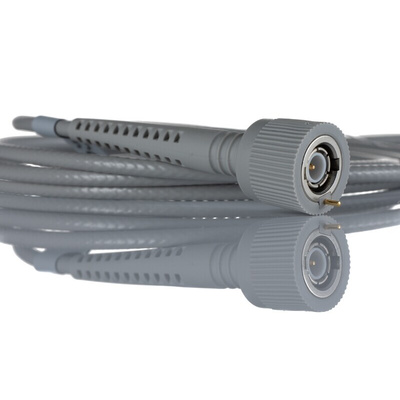

Keysight Technologies Oscilloscope Probe, BNC Connector Type, For Use With InfiniiVision and Infiniium Series - N287XA Series - N2870A

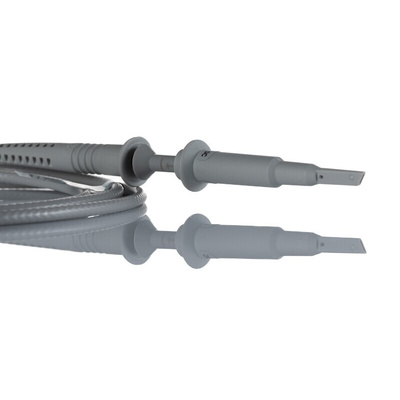

Put your circuit design to the test with this oscilloscope probe from Keysight Technologies. It's compatible with oscilloscopes in the InfiniiVision and Infiniium series, so you're assured of an ideal fit. The probe tip has a small diameter of just 2.5mm, making it easier to precisely test small components and connections on fine-pitched PCBs. Spring loading keeps the oscilloscope in place during testing to ensure accurate results. This product also comes with five different IC caps for IC lead pitches between 0.5 and 1.27mm to maintain correct alignment.

Features & Benefits

• Light weight of 48g for ease of handling
• Cable length of 1.3m for a good reach
• Broad operating temperature range between 0°C and +50°C for use in challenging environments

Applications

• PCB and IC testing
• Production line maintenance
• Diagnostics

How many probe tips are included?

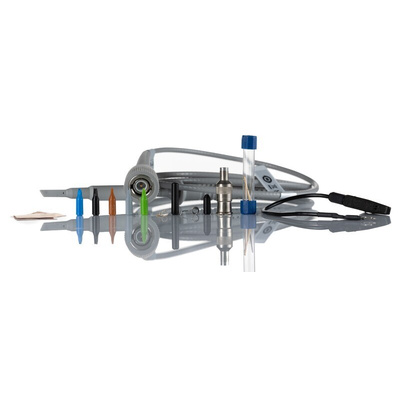

In addition to one spring-loaded tip, this probe comes with four spare tips. Two are spring-loaded and two are rigid, providing options to suit your application's needs.

What's the difference between active and passive probes?

Active probes need external power to function, while passive probes like this one don't. This makes them more convenient as they're highly portable.

Passive Oscilloscope Probes

Note

All the products in this range are supplied for use with instruments with a permanent earth connection.

Техническая спецификация
pdfN28xxA, N28xxB_EN
Затухание:
1
Категория безопасности:
CAT II 55В
Количество датчиков:
7
Максимальное входное напряжение при общем режиме:
60В пост. тока
Модель р:
N2870A
Полоса - ширина:
35МГц
Серия:
N287XA
Тип зонда:
Пассивный
Тип коннектора:
BNC
