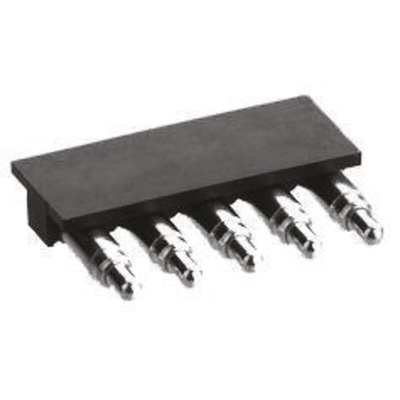

8PM-11-0005-02-168, Preci-Dip Right Angle Surface Mount Spring Loaded Connector, 5 Contact(s), 2.54mm Pitch, 1 Row(s), Shrouded

2.54 mm SIL Spring-Loaded Contacts, parallel surface mount pad

These Preci-dip SIL 8PM-11 Series low resistance modular connectors have spring-loaded contacts (SLC) with parallel surface mount pads suitable for pick & place machinery.
For dimension details please refer to manufacturers datasheet on our website.
For counterpart SMD SIL Pad Connectors see stock number 702-0360 (straight) or 702-5126 (parallel) typical
For SIL Through Hole Connectors see stock number 701-9947 and for Straight SMD Connectors see 702-0234 typical

Standards

UL 94V-0

Preci-dip Spring-Loaded Connectors

A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.

Connectors with spring-loaded contacts (SLC), surface mount Data Sheet
