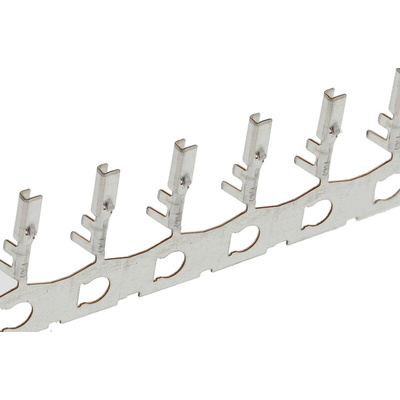

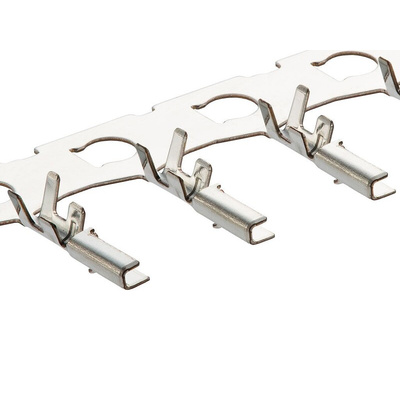

502381-0000, Molex CLIK-Mate Series Male Crimp Terminal, 28AWG Min, 26AWG Max, Контакты

Crimp Terminal

1.25mm Wire to Board CLIK-Mate™ SMT

Use with 502380 Series crimp housings typical stock number 660-1022
Mates with 502382 Series vertical PCB receptacles and 502382 Series 90° PCB receptacles typical stock numbers 660-1050 and 660-1081 respectively

Molex Crimp Terminal, Accommodates 28 to 26AWG, Tin Contact Plating - CLIK-Mate Series - 502381-0000

Making secure electrical connections is a walk in the park with this male crimp terminal from Molex. It's designed for use with the CLIK-Mate series of connector housings (such as 134-5381) to give you a compact and reliable solution in applications with a high pin count. As this terminal features mating polarisation, there's no need to worry about inserting wires incorrectly. This cuts the risk of downtime or equipment damage.

Features & Benefits

• Positive locking design holds the terminal firmly in place in the housing
• Tin-plated copper alloy contacts provide high conductivity for reliable signalling
• Tuning-fork terminal design gives you a secure mating contact that's easy to insert

Applications

• LCD TVs
• Medical patient monitors
• Antennas

How do I know when I've successfully mated my connector?

As the name suggests, the positive inner locks on CLIK-Mate connectors produce an audible 'click' sound on successful mating so you know it's fitted correctly.

1.25mm Wire to Board CLIK-Mate™ SMT

The SMT CLIK-Mate™ series has a lock design that offers ease of use combined with superior mating retention.,With a unique tuning-fork terminal concept that provides low insertion force and secure mating contact.,The system also provides about 60% space saving compared with similar dual-lock 2.00mm pitch versions.,Designed for applications such as LCD TV's that require higher pin count connectors to carry more signal line in less space.

Robust positive lock provides greater mating assurance
Direct vacuum pick-and-place; no capton tape needed
Superior terminal polarization features prevent wrong terminal insertion
Single lock 1 - 7 way, dual lock 8 - 15 way

Crimp terminal 1.25mm CLIK-Mate Plug Drawing

Datasheet
