RS PRO Zinc Plated Steel Tapered Handle, M12 x 23mm, Ручка

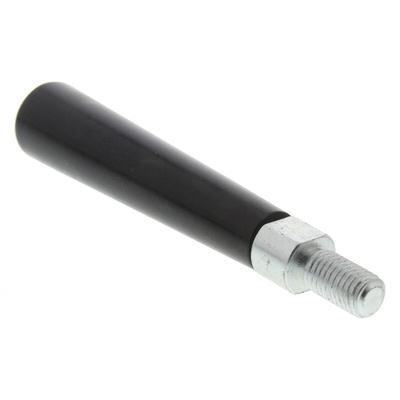

RS PRO Zinc-Plated Steel Tapered Handle, M12 x 23 mm

This industrial tapered handle from RS PRO makes the manual rotation of a shaft easier thanks to its revolving grip. You can use it as a removable crank or as a lever on a handwheel.
The handle's phenolic (PF) resin coating is resistant to oil, grease and most chemicals, as well as UV light. This gives it a long working life even when used in harsh industrial applications. This good resistance to abrasive substances also saves on cleaning time, as the handle doesn't have to be washed after each use. Its tapered steel thread is robust and can withstand high levels of force without the risk of breaking.
As this lever has a wide operating temperature range, it's suitable for environments ranging from cold storage facilities to factories where equipment runs at high temperatures. To give you peace of mind, this component comes with a three-year warranty.

Features and Benefits

• Black colour
• Handle made from phenolic plastic
• Shaft made from steel
• Insert made from zinc-plated steel
• Length of 140 mm
• Male thread
• M12 thread size
• Thread/insert length of 23 mm

Dimensional Drawing

RS Pro Datasheet
