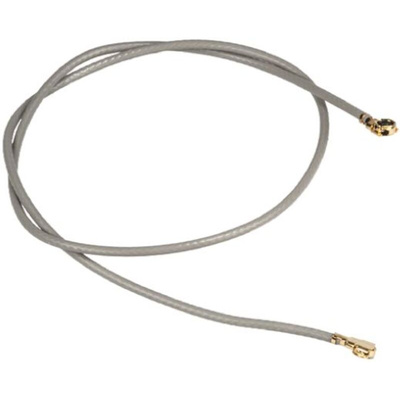

73412-0231, Molex MICROCOAXIAL Series Male U.FL to Male U.FL Coaxial Cable, 110mm, Terminated, Кабель

Molex Male U.FL to Male U.FL RF Coaxial Cable

From Molex comes the male to male U.FL coaxial cable. With an impedance rating of 50 Ohms, this range of high-quality cables provides customers with an excellent and essential solution for a variety of cable connection needs.
These RF (radio frequency) coaxial cables come in varieties of lengths, please see a list of alternative options below.

1617938 (Mfr. Part No. 73412-0508) - 50mm length
1676493 (Mfr. Part No. 73412-0231) - 110mm length
1676495 (Mfr. Part No. 73412-0502) - 110mm length
7031341 (Mfr. Part No. 73412-0231) - 110mm length
7031345 (Mfr. Part No. 73412-0232) - 65mm length
7031354 (Mfr. Part No. 73412-0237) - 240mm length
7719136 (Mfr. Part No. 73412-0280) - 65mm length
7719142 (Mfr. Part No. 73412-0502) - 110mm length
7719149 (Mfr. Part No. 73412-0508) - 55mm length

Counterparts for PCB:
702-5429 (Mfr. Part No. 73412-0114)
702-5425 (Mfr. Part No. 73412-0110)

Features

• 0.81mm Cable Diameter


• Dual-Ended Connectors


• Material - Phosphor bronze


• Gold Plating Mating

Applications

These cables have a multitude of applications such as:

• Connecting radio transmitters and receivers to antennas,


• Connecting broadband routers to the supplier network,


• Feeding signals through to your television.

What is Impedance?

Impedance is an electric current’s opposition being measured when the voltage has been applied.

Microcoaxial, Ultra-Microminiature Connectors

These Molex Microcoaxial connectors are very small, cost effective, RF connectors that are compatible with U.FL® connectors. The cable mount right angle plug is only available terminated as a full cable assembly.

Microcoaxial RF UFL to UFL Cable Assemblies - Drawing

Datasheet
