3403.0160.24, SchurterSMD Non Resettable Fuse 250mA, 250 V ac, 125V dc, Предохранитель

Schurter UMT 250 Fuses

Schurter UMT fuses offer primary protection on SMD PCB's. There are several applications that are suited to the performance characteristics of the UMT SMD fuse. These applications include industrial electronic, sensors, power supplies, explosion protection and lighting.

Surface Mount
High current range up to 10A
High breaking capacity
Compact design

Standards

IEC, UL, CSA

Approvals

VDE, UL

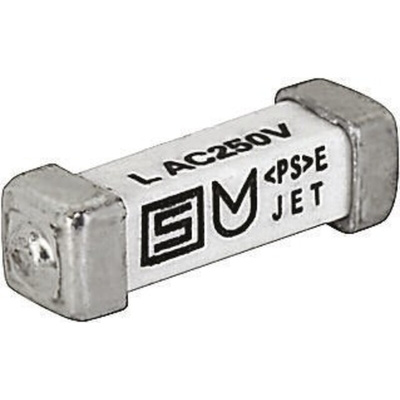

Schurter Surface Mount Ceramic Fuse

The Schurter UMT 250 surface mount compact fuse has a ceramic housing and a tin plated copper alloy terminal. This surface mount fuses offer considerable space saving features for low voltage applications. The FF type is ideal for protection of high value silicon ICs. It has an electrical rating of 125VDC/250VAC and 250mA.

Features and Benefits

• Service temperature ranges between -55°C and 125°C
• High current 80mA to 10A
• High breaking capacity ranging from 35A to 200A
• Provides primary protection on PCB and SMD

Applications

• Industrial electronics
• Medical equipment
• Audio/visual equipment
• Power supplies

Certifications

• CSA C22.2 no. 248.14 certified
• IEC 60127-4/2 certified
• UL 248-14 approved

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

UMT 250 Surface Mount Fuse, 10.1 x 3 mm, Time-Lag T, 250 VAC, 125 VDC Data Sheet
