3413.0330.22, SchurterSMD Non Resettable Fuse 15A, 32 V ac, 63V dc, Предохранитель

Schurter UST Fuses

Schurter UST 1206 suface mount fuses offer secondary protections for both DC and AC applications. Ideally suitable for circuits with inrush also LCD backlight DC-AC inverter.

High melting I²t-values
Slow Blow

Standards

UL 248-14, CSA C22.2 no. 248.14

Approvals

UL Recognised

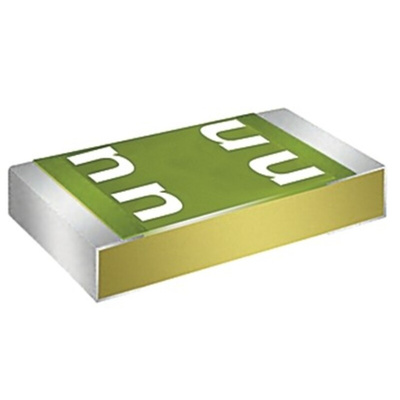

Schurter UST Surface Mount Fuse

The Schurter UST 1206 surface mount compact fuse has epoxy glass housing and tin plated copper terminal. This surface mount fuse offers considerable space saving features for low voltage applications. It offers secondary protection for both DC and AC applications. The FF type is ideal for protection of high-value silicon. This fuse has an electrical rating of 63VDC/32VAC and 15A.

Features and Benefits

• Service temperature ranges between -55°C and 90°C
• Compact in size
• High melting I²t-values
• Breaking capacity is 63 A
• Suitable for circuits with inrush also LCD backlight DC-AC inverter

Applications

• Alarm system
• Audio/visual equipment
• Power supplies
• Medical equipment
• Industrial electronics

Certifications

• CSA C22.2 certified
• IEC 60127-4/2 certified
• UL 248-14 approved

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

SMD Fuse, 3.2 x 1.6 mm, Time-Lag T, 32 VAC, 63 VDC Data Sheet
