3413.0332.22, SchurterSMD Non Resettable Fuse 25A, 32 V ac, 63V dc, Предохранитель

Schurter UST Fuses

Schurter UST 1206 suface mount fuses offer secondary protections for both DC and AC applications. Ideally suitable for circuits with inrush also LCD backlight DC-AC inverter.

High melting I²t-values
Slow Blow

Standards

UL 248-14, CSA C22.2 no. 248.14

Approvals

UL Recognised

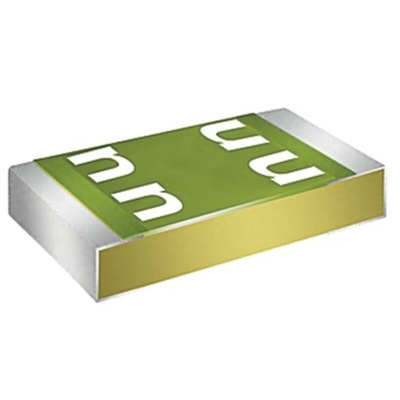

Schurter Surface Mount Fuse

The Schurter UST 1206 surface mount compact fuse has epoxy glass housing and tin plated copper terminal. This surface mount fuse offers considerable space saving features for low voltage applications. The FF type is ideal for protection of high value silicon ICs. It has an electrical rating of 63VDC/32VAC and 25A. This fuse is mounted on PCB.

Features and Benefits

• Service temperature ranges between -55°C and 90°C
• High current range up to 25A
• High Breaking capacity is 100A to 600A
• Offers secondary protection to DC and AC applications
• High melting I²t-values

Applications

• Circuits with inrush
• LCD backlight DC-AC inverter
• Medical equipment
• Audio/visual equipment
• Power supplies
• Industrial electronics

Certifications

• CSA C22.2 no. 248.14 certified
• UL 248-14 approved

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

SMD Fuse, 3.2 x 1.6 mm, Time-Lag T, 32 VAC, 63 VDC Data Sheet
