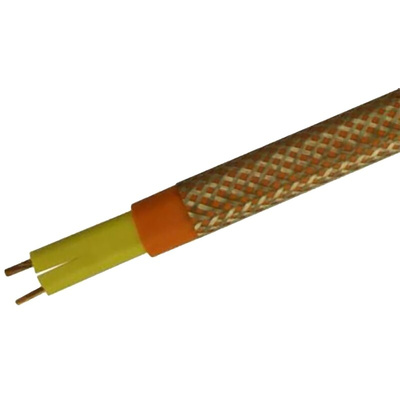

RS PRO Constant Wattage Trace Heating Cable, 12W/m, 110V ac, -60 → +200 °C, 20m, Нагревательный кабель

RS PRO Trace Heating Cable - Constant Wattage

RS PRO is proud to offer a range of trace heating cables. These cables are of the highest quality and are designed to be cut from reel lengths and site terminated to suit pipe work. The constant wattage tape consists of several short heating zones, each connected across a pair of continuous bus-wire conductors. Each complete heating zone will give its full-rated design output with circuit voltage applied to the bus-wire conductors.

Features and Benefits

• Cable measurements available are 20 m or 100 m


• Designed to be cut from reel lengths


• Parallel circuit - constant watt for hazardous areas


• Short heating zones

Specification

• Cable Type: Constant Wattage


• Sheath Material: Silicone Rubber


• Voltage Rating: 110 V or 240 V


• Operating Temperature Range -60 to +200 °C


• Hazardous Area Certification: ATEX


• BS EN 60079-0:2009, BS EN 60079-30-1:2007

RS PRO 110V ac Trace Heating Cable Variants – Available Separately

• L.20 m, 12W, 110 V ac, RS stock no: 703-3158


• L.20 m, 30W, 110 V ac, RS stock no: 703-3170

RS PRO 240V ac Trace Heating Cable Variants – Available Separately

• L.20 m, 12W, 240 V ac, RS stock no: 665-7491


• L.20 m, 20W, 240 V ac, RS stock no: 665-7508


• L.100 m, 30W, 240 V ac, RS stock no: 665-7526
