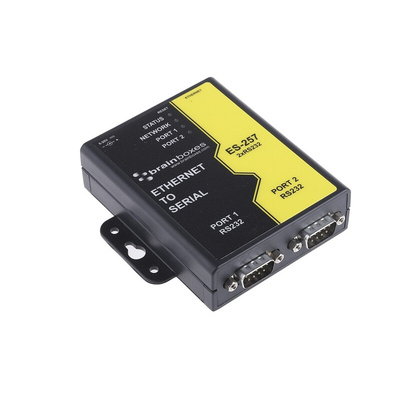

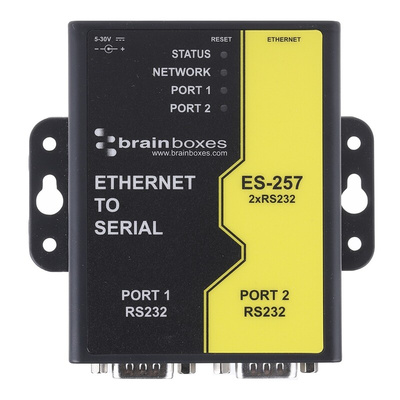

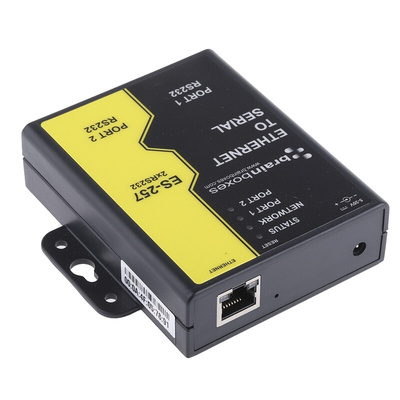

ES-257, Brainboxes Server

Brainboxes Adapter

The Brainboxes adapter is an Ethernet to serial device server provides access to two RS232 serial ports. It has removable screw terminals blocks for easy wiring. This device provides simple instant networked serial ports in demanding environments. It has serial port tunnelling that allows serial cable replacement over any distance. It also has a web interface that allows a secure configuration and control of the serial ports over a local network or the internet using any browser. This adaptor can be accessed via TCP/IP sockets from any networked device like an Android tablet, PC or phone

Features and Benefits

Maximum baud rate is 1,000,000 (1MBaud )
10/100Base TX Ethernet port
User-friendly interface, Simple to use and powerful in operation
Web configuration and RFC2217 compliant interface for non-Windows users
LED status indication
Optional DIN rail mounting kit
No software required
Power supply included (power input that ranges between 5VDC and 30VDC)
Simple operation for each and every operating system

Applications

Remote monitoring
Industrial sites
