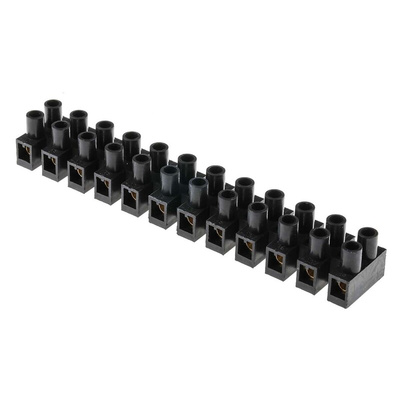

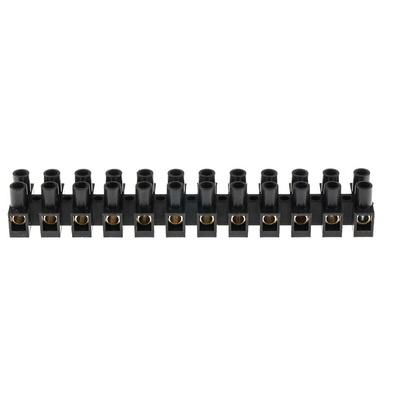

RS PRO Terminal Strip, 12-Way, 32A, 6 mm² Wire, Screw Termination, Клеммная колодка

RS PRO Terminal Strip, Straight, 12-way, 2 Row, 12 mm Fixing Centres, 32 A, 380 V, length 114 mm, Black

Make wire-to-board and wire-to-wire connections without the need for plugs with this RS PRO terminal strip. It's modular and insulated, with 12 contacts organised in two side-by-side rows.

The strip is housed in a polypropylene cover, offering excellent resistance to chemicals, fatigue and heat. The unit is quick to connect and disconnect – simply press the wire against the conductor strip in the block with a screwdriver. To make connecting electrical components even easier, it comes with a clamping component and a conducting brass strip. The screw clamps are compatible with a wide range of wire sizes, providing dependable connections.

Terminal strips make fixed connections that are readily accessible for troubleshooting. They can be used in any electrical situation where wires need to be joined together. Plus, they're useful for organising connections into a logical arrangement.

Features and Benefits

• Polypropylene housing material
• Screw-type electrical connector
• 12 contacts in 2 rows
• Wire size of 6 mm²
• Pitch of 12 mm
• Current rating of 32 A
• Voltage rating of 380 V
• Flame retardant
• Black in colour
• Straight body orientation
• Screws made of galvanised steel
• Not fused
• Maximum operating temperature of +80°C
• Dimensions of 114 mm (L) x 23.5 mm (W) x 10 mm (D)
• Conforms to CE (BS EN 60998) standards for electrical connectors
