RS PRO Terminal Strip, 12-Way, 24A, 2.5 mm² Wire, Screw Termination, Клеммная колодка

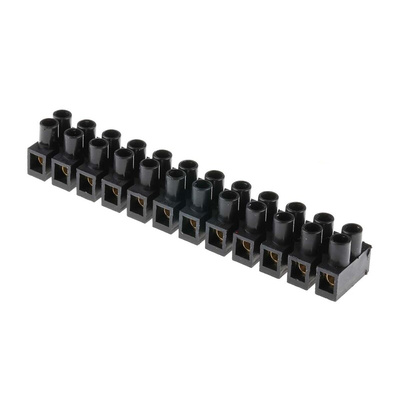

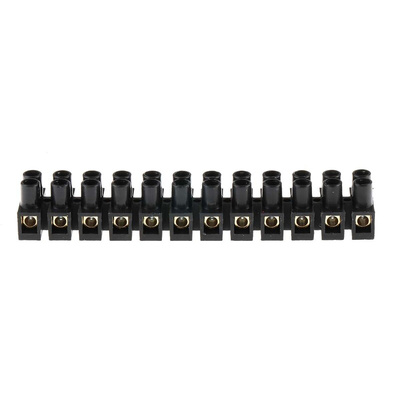

RS PRO Terminal Strip, Straight, 12-way, 2 Row, 8 mm Fixing Centres, 24 A, 400 V, Length 93.7 mm, Black

This RS PRO terminal strip is a modular, insulated block with 12 contacts organised in two parallel rows. They're used to make wire-to-board and wire-to-wire connections without the need for plugs.

The unit consists of a clamping component and a conducting brass strip that helps connect electrical components. The screw clamps can accommodate a wide range of wire sizes and provide reliable connections. You simply press the wire against the conductor strip in the block using a screwdriver – it's quick to connect and disconnect. The strip is housed in a polypropylene cover, which provides good resistance to chemicals, fatigue and heat.

Terminal strips can be used in any electrical situation where wires need to be joined together. They create a fixed connection that's readily accessible for troubleshooting. Where there are a few wires to connect, they organise connections into a logical arrangement.

Features and Benefits

• Polypropylene housing material
• Screw-type electrical connector
• 12 contacts in 2 rows
• Wire size of 2.5 mm
• Cross-section sizes from 0.5 mm² to 4 mm²
• Flame retardant
• Black in colour
• Straight body orientation
• Screws made of galvanised steel
• Operating temperature up to +85°C
• Dimensions of 93.7 mm (L) x 16 mm (W) x 15 mm (H)
• Conforms to CE (BS EN 60998) for electrical connectors

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
