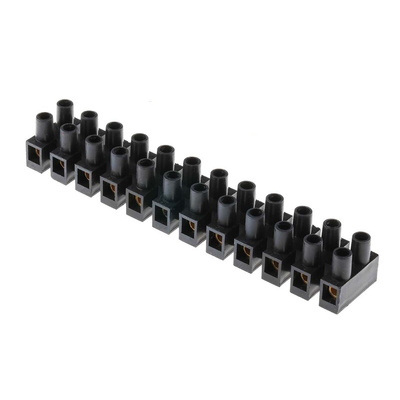

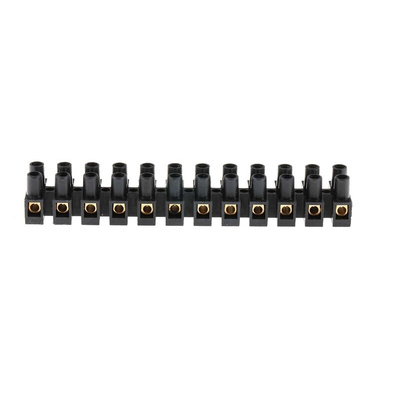

RS PRO Terminal Strip, 12-Way, 24A, 4 mm² Wire, Screw Termination, Клеммная колодка

RS PRO Terminal Strip, Straight, 12-way, 2 Row, 10 mm Fixing Centres, 24 A, 380 V, Length 116.5 mm, Black

This insulated, modular terminal strip from the RS PRO range has 12 contacts arranged in two parallel rows. It's used to create wire-to-board and wire-to-wire connections, without having to use plugs.

With a clamping component that fits a wide range of wire sizes and a conducting brass strip, it gives you reliable connections. Make connections and disconnections quickly – just push the wire against the block's conductor strip using a screwdriver. The polypropylene cover on the terminal strip gives good resistance to heat, chemicals and fatigue.

You can use this terminal strip from RS PRO in any electrical situation where wires must be joined. Creating a fixed connection, this unit is easily accessible for troubleshooting and, if you have a few wires to connect, connections can be conveniently organised into a logical arrangement.

Features and Benefits

• Polypropylene housing material
• Screw-type electrical connector
• 12 contacts in 2 rows
• Wire size of 4 mm²
• Cross-section sizes from 0.5 mm² to 4 mm²
• Flame retardant
• Black in colour
• Straight body orientation
• Screws made of galvanised steel
• Operating temperature up to +85°C
• Dimensions of 116.5 mm (L) x 20.5 mm (W) x 17 mm (H)
• Conforms to CE (BS EN 60998) standards for electrical connectors

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
