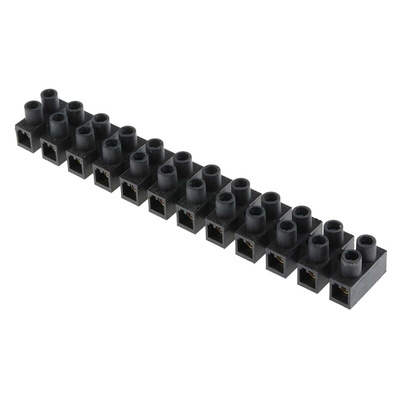

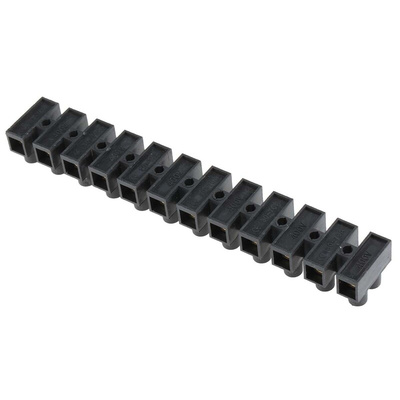

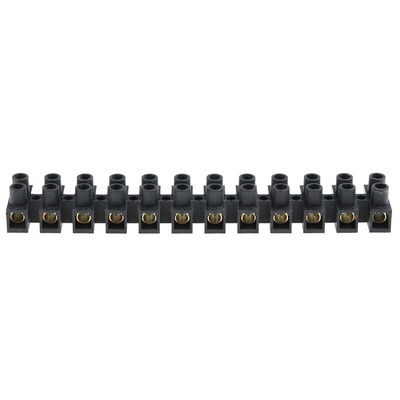

RS PRO Terminal Strip, 12-Way, 76A, 16 mm² Wire, Screw Termination, Клеммная колодка

RS PRO Terminal Strip, Straight, 12-way, 2 Row, 15 mm Fixing Centres, 76 A, 400 V, length 175.5 mm, Black

Make wire-to-board and wire-to-wire connections without plugs with this terminal strip from the RS PRO range. The modular, insulated block has 12 contacts in two parallel rows.

With a clamping component suitable for a wide range of wire sizes and a conducting brass strip, it gives you secure connections. Quickly make connections and disconnections by pushing the wire against the block's conductor strip using a screwdriver. The polypropylene cover on the terminal strip gives good protection against heat, chemicals and fatigue.

Organise your wires into a logical order with this black terminal strip. Allowing you to join wires together and creating a fixed connection, this unit is easily accessible when troubleshooting is required. As part of the RS PRO range, the strip has been stringently tested for durability and consistency.

Features and Benefits

• Polypropylene housing material
• Screw-type electrical connector
• 12 contacts in 2 rows
• Wire size of 16 mm²
• Current rating of 76 A
• Voltage rating of 400 V
• Fixing centre and pitch of 15 mm
• Flame retardant
• Black in colour
• Straight body orientation
• Operating temperature up to +80°C
• Dimensions of 175.5 mm (L) x 25.3 mm (W) x 23 mm (D)
• Conforms to CE (BS EN 60998) standards for electrical connectors

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
