RS PRO Terminal Strip, 12-Way, 57A, 10 mm² Wire, Screw Termination, Клеммная колодка

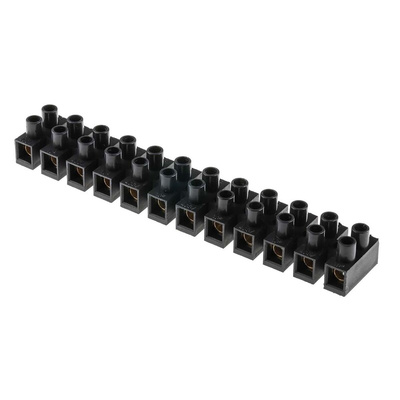

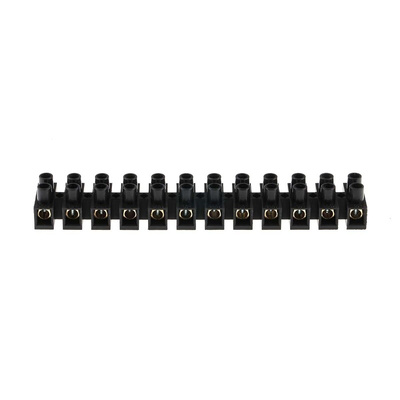

RS PRO Terminal Strip, Straight, 12-way, 2 Row, 11 mm Fixing Centres, 57 A, 400 V, Length 150.5 mm, Black

Logically arrange and organise your wires with this terminal strip from the RS PRO range. The modular, insulated block has 12 contacts across two parallel rows. Use it to make wire-to-wire and wire-to-board connections without requiring plugs.

The clamping component and conducting brass strip allows you to effortlessly connect electrical components. Make quick connections and disconnections by just pressing the wire against the strip's conductor block using a screwdriver. The polypropylene cover provides resistance to chemicals, heat and fatigue. The screw clamps can support a wide range of wire sizes and provide secure connections.

A terminal strip like this one from the RS PRO series can be used in any electrical situation where wires need to be linked together. It creates a fixed connection that's easily accessible if you need to troubleshoot problems.

Features and Benefits

• Polypropylene housing material
• Screw-type electrical connector
• 12 contacts in 2 rows
• Wire size of 10 mm²
• Fixing centres at 11 mm
• Flame retardant
• Black in colour
• Straight body orientation
• Operating temperature up to +80°C
• Dimensions of 150.5 mm (L) x 20.7 mm (W) x 11 mm (D)
• Conforms to CE (BS EN 60998) standards for electrical connectors
