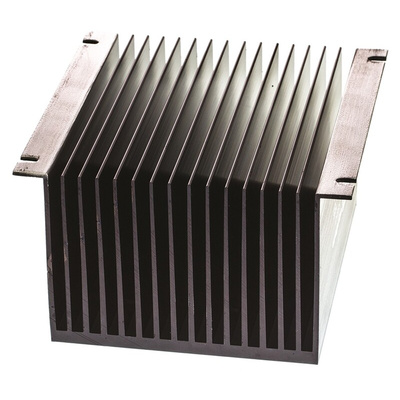

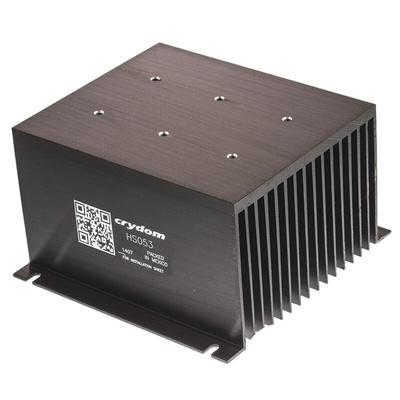

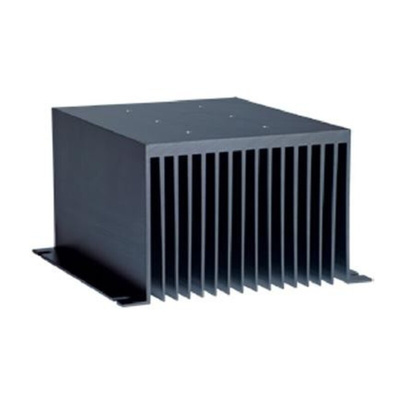

HS053, Sensata / Crydom HS Series Panel Mount Relay Heatsink for Use with 1 x 3 phase SSR, 1, 2 or 3 single or dual SSR, Радиатор

Panel Mount Heatsink, Triple - HS053

0.5°C/W Thermal resistance
Suitable for 1, 2 or 3 single or dual SSRs or one 3 Phase SSR
Panel mounting
Aluminium, black anodized
Accepts fan (1-80mm)

Sensata | Crydom Relay Heatsink, Aluminium Housing, 1 to 80mm Fan Size - HS053

Prevent the overheating of your solid-state relays with this heatsink from Sensata | Crydom. Thanks to its low thermal resistance of 0.5°C/W, it allows for efficient heat transfer to keep the temperature of your devices stable for optimal performance. You can install fans ranging in size between 1 and 80mm to ensure proper cooling of the system. This device is suitable for one, two or three single or dual SSRs, as well as 3-phase relays, making it a versatile option. You'll find it used in computer networking and telecommunication appliances.

• Black anodised aluminium housing provides resistance to corrosion and wear for use in harsh environments
• Screws directly onto a panel for simple and secure mounting
• Light weight of 1.4kg to place minimal strain on your equipment
• Mounting screw torque of 1.7 to 2.2Nm for a secure hold on your panel

How does this heatsink work?

This heatsink has fins with a large surface area to cool the hot air from the solid-state relays. The air is expelled into the environment to ensure proper ventilation.
