HS501DR-D2425, Sensata / Crydom HS501DR Series Solid State Relay, 10 A Load, DIN Rail Mount, 280 V ac Load, 32 V Control, Реле

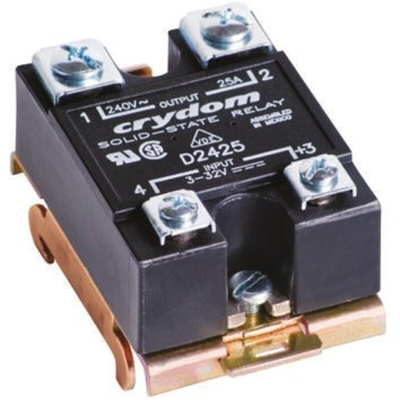

Sensata | Crydom Solid-State Relay, 3 to 32V DC Control Voltage Range, 10A Rated Load Current - HS501DR Series - HS501DR-D2425

Looking for a reliable switching solution for your electrical equipment? Change to this solid-state relay from Sensata | Crydom. It's handy for low-power applications thanks to its rated load current of 10A. A maximum turn-on and turn-off time of half a cycle means it switches in the blink of an eye. This device has a thermally conductive epoxy encapsulation, so it keeps its cool during intense use. You'll find this relay used for consumer electronics.

• Snaps onto a DIN rail for installation in a jiffy
• Broad operating temperature range between -40°C and +80°C for use in harsh industrial conditions
• Light weight of 141g to place minimal strain on your rail

How large is this SSR?

This component has compact dimensions of 80 (L) x 45.7 (W) x 40.3mm (H), so it's a space-efficient choice for your setup.

What's zero-cross switching?

Zero-cross switching means the device starts up when the voltage approaches zero. This helps to minimise noise and increase efficiency.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

HS501DR Series Assemblies Data Sheet

Declaration of Conformity 2014/35/EU
