Sensata / Crydom Lug Terminal for Screw Terminal, TRM6, Зажим

Sensata | Crydom Terminal Connection, Copper Material, 14 to 6AWG Wire Size - TRM6

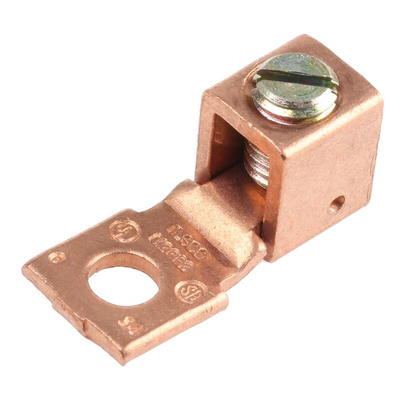

Need a way to group and join stranded wires to your electrical terminals? This lug terminal connection from Sensata | Crydom is just the thing. As its screw clamps are adjustable, it's a doddle to fit wires ranging in size from 14 to 6AWG. It comes with a pre-drilled mounting hole, giving you the option to mount it to any Sensata | Crydom solid-state relay. You don't have to worry about overdriving the screw either, as the terminal has a burly torque rating of 20lbs/2.3nm.

Features & Benefits

• Conductive copper lug material ensures current follows a defined path with no creep
• Compatible with screw mount sizes #8, #10, M4, M5 or 1/4-20 for versatility

What equipment will I need to connect wires to this lug?

Setting up this lug is simple as all you'll need is a standard slotted screwdriver and a tool for cutting and stripping your wires.

How big is this part?

It has compact dimensions of 25.4 (L) x 11.48 (W) x 11.91mm (H), so you can easily fit it into a small enclosure.
