D1D60, Sensata / Crydom 1-DC Series Solid State Relay, 60 A Load, Surface Mount, 100 V Load, 32 V Control, Реле

Crydom 1-DC Series Panel Mount Solid State Relays

MOSFET output
Ratings from 60A to 100A @ 100 Vdc
DC control
Relays are easily paralleled for higher current applications

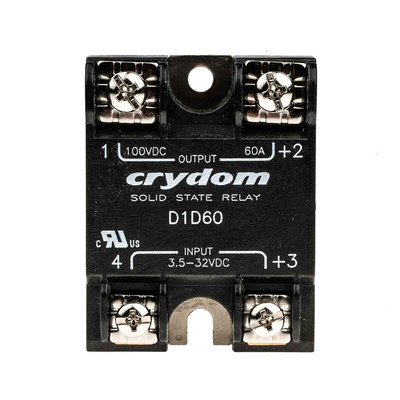

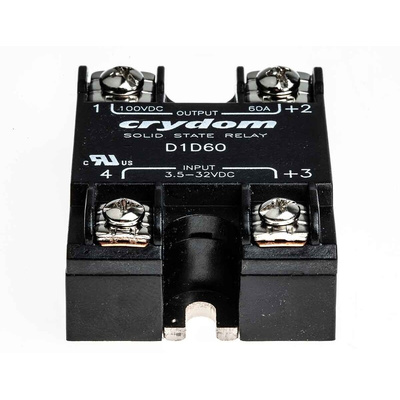

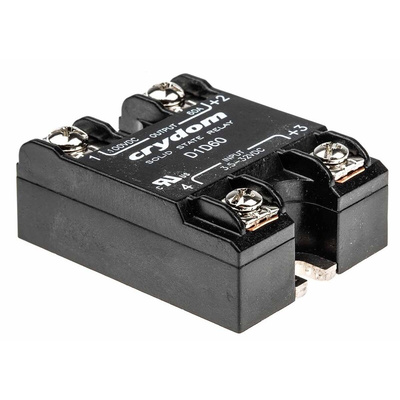

Sensata | Crydom Solid-State Relay, 60A Current Rating, 100μs Turn-On Time - 1-DC Series - D1D60

When you need to reliably switch your circuits on or off, choose this solid-state relay from Sensata | Crydom. Thanks to its MOSFET output type, it works with a minimum input of just 5mA and can switch heavy loads up to 60A, making it an efficient choice. A rapid turn-on time of 100μs gives you fast switching for increased productivity. As this SSR has no moving parts, there's minimal wear on components for reduced maintenance and a long service life. You'll find SSRs like this one used in HVAC systems, packaging machines and injection moulding equipment.

• Light weight of 75.5g to place minimal strain on your equipment
• Flame-retardant housing to prevent the spread of flames in the event of a fire
• Anti-rotation barriers help to prevent disconnection
• Broad operating temperature range between -40°C and +100°C for use in challenging environments

What's the size of this relay?

This relay has compact dimensions of 44.5 (L) x 22.6 (W) x 57.3mm (H), so it's ideal for use in confined setups.

Crydom Solid State Relay and Accessories

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - DC Output
