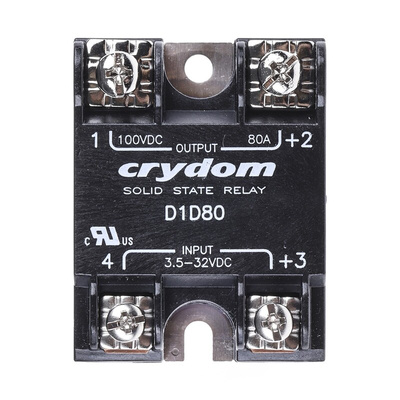

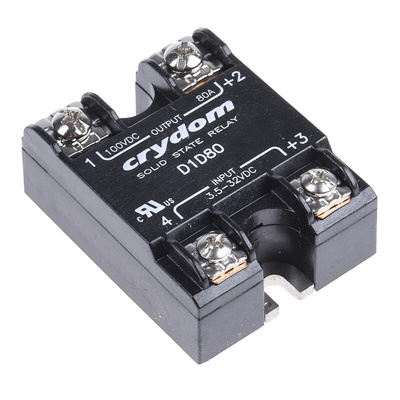

D1D80, Sensata / Crydom 1-DC Series Solid State Relay, 80 A Load, Surface Mount, 100 V Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, 80A Rated Load Current, MOSFET Output - 1-DC Series - D1D80

Prevent sloppy switching from wreaking havoc on your equipment by installing this DC-controlled solid-state relay from Sensata | Crydom. As this type of relay has no moving parts, there's less wear and tear to worry about. An MTBF of over 21 million hours at +40°C means it's a long-lasting solution you can rely on. The maximum time it takes to turn on or off is just 100μs, so it gives you lightning-fast switching. This type of relay is suitable for use in fast-moving robotic systems, motor control and instrumentation applications.

Features & Benefits

• Labelled inputs and outputs make surface mounting a breeze
• Wide operating temperature range between -40°C and +100°C for use in harsh conditions
• Flame-retardant housing means burning stops in 10 seconds or less in the event of a fire

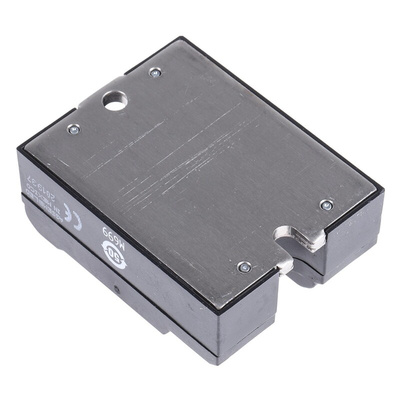

• Aluminium baseplate for resistance to corrosion and impact

What's the control voltage range of this SSR?

This SSR has a control voltage range between 3.5 and 32V DC, so it's just the thing for use with low-voltage equipment.
