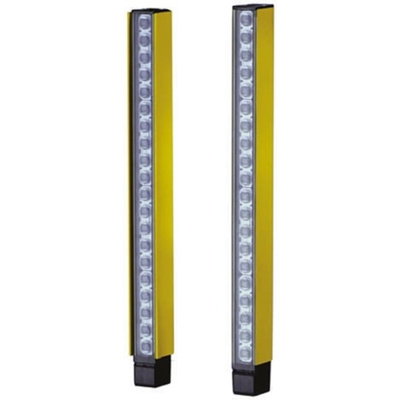

445L-P4E0600FP, Allen Bradley Guardmaster micro 400 Light Curtain, Sender & Receiver, 24 Beams, 30mm Resolution, Световые завесы

7034971
Номер производителя: 445L-P4E0600FPПроизводитель: Allen Bradley Guardmaster
Цена за 1 пару
272445.00 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

GuardShield Safe 4, 445L Series

Economical, Type 4 safety light curtain designed for small assembly machines in ambient operating environments, or where mounting space is limited. Connection to an MSR42 controller (stock number 703-4987), improves flexibility for applications requiring two or three light curtains or other safety devices such as safety laser scanners, E-Stops or safety switches. The MSR42 controller has two PNP OSSDs which can be connected directly to the final switching device. If safety relay outputs are required, up to three safety relay expansion modules (MSR45E - stock number 703-4980) may be easily connected to the controller. A ribbon cable (stock number 703-4984) is required to interconnect up to three MSR45E safety expansion modules to an MSR42 controller. The light curtains, when used in conjunction with the MSR42 controller, have a SIL 3 rating per IEC61508. They also meet IEC61496 and UL61496 and are CE marked by TÜV.

Pigtail cable with M12 connector
3 box system with dedicated safety controller
Slim profile housing (15 mm x 20 mm)
DIN controller is also multi function safety module
Configuration of controller functionality through wiring or software
Type 4, SIL 3

Note

The GuardShield Micro 400 safety light curtains are ordered as pairs (transmitter and receiver). The MSR42, MSR45E, ribbon cable connectors and patch cords are ordered separately to complete the safety system.

Light Curtain

Техническая спецификация
pdfGuardShield Micro 400 Safety Light Curtains Data Sheet
PL EN ISO 13849-1:
e
SIL IEC 61508:
3
Высота:
601мм
Диапазон:
GuardShield
Длина:
19.8мм
Защитная высота:
600мм
Количество балок:
24
Максимальное время отклика:
23 мс
Максимальное расстояние сканирования:
Минимальное расстояние сканирования:
Напряжение питания:
24 В пост. тока
Особенности:
EDM, Fixed Blanking, Floating Blanking, Muting, Start/Restart Interlock
Применение:
Hand
Размеры:
15.5 x 19.8 x 601 мм
Разрешение луча:
30мм
Серия:
micro 400
Тип безопасности:
4
Тип клеммы:
8-контактный M12 Разъем
Тип компонента:
Receiver, Sender
Ширина:
15.5мм
