1SFA896114R7000, ABB Soft Starter, Soft Start, 45 kW, 600 V ac, 3 Phase, IP10, IP20, Устройство плавного пуска

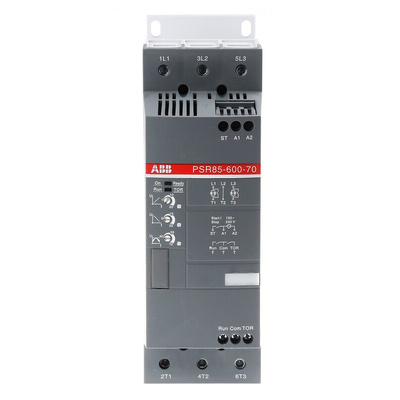

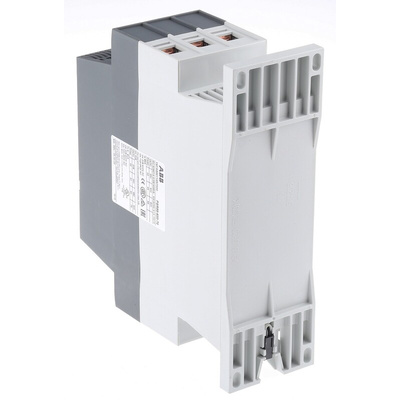

ABB Soft Starter, 3 Phase, 85A Operating Voltage - PSR Series - 1SFA896114R7000

Choose this soft starter from ABB to prolong the life and efficiency of your 3-phase motors. It works by limiting the initial power needed to start your machinery, helping to prevent both electrical and mechanical strain on your system. The starter has a wide operating voltage range between 208 and 600V AC for use in both low-power and high-power systems. Its LED indicators clearly display its operating status, making it easy to monitor and troubleshoot at a glance.

Features & Benefits

• IP10 rating means it's hand-safe and protected against objects larger than 50mm in size
• Compact dimensions of 220 (H) x 180 (W) x 70mm (D) for installation in tight spaces
• Wide operating temperature range between -25°C and +60°C for safe use in demanding environments
• Light weight of 2.27kg for easy handling

Applications

• Mining industry
• Electric motors
• Pump systems
• Manufacturing facilities

How can I increase the number of starts this unit can handle per hour?

This product can handle ten starts per hour at 85A. You can add an auxiliary fan to increase the capacity to 20 starts in an hour.

ABB Softstarter - Data Sheet

Datasheet

Brochure - Softstarter

Datasheet - 1SFA896114R7000

Line Drawing - 1SFA896114R7000

Manual - PSR Series
