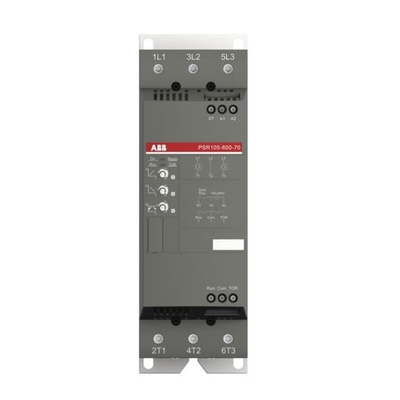

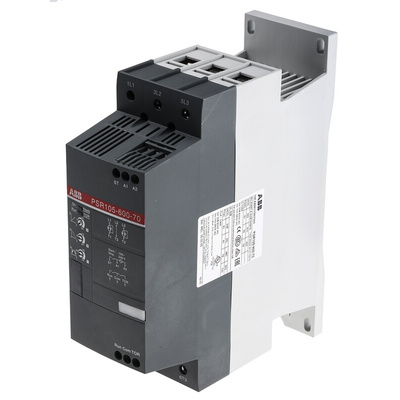

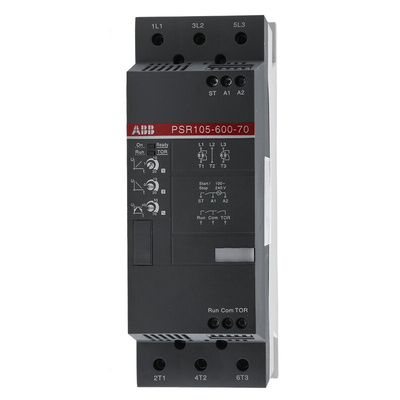

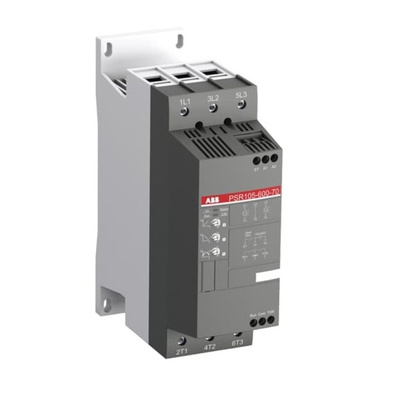

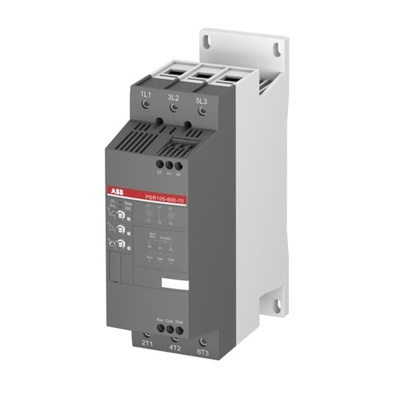

1SFA896115R7000, ABB Soft Starter, Soft Start, 55 kW, 600 V ac, 3 Phase, IP10, IP20, Устройство плавного пуска

ABB Soft Starter, 55kW Power Rating, 105A Current Rating - PSR Series - 1SFA896115R7000

Protect your electric motor against sudden power influxes with this soft starter from ABB. It reduces the chance of large inrush current overloading your motor, which helps to make your system reliable and productive. The built-in bypass ensures the unit runs cool and keeps your energy consumption down. It also eliminates the need for air-forced cabinet ventilation, reducing the need for extra kit in your control cabinet. To support overall motor efficiency, this soft starter cuts down on bearing, shaft and gearbox wear.

Features & Benefits

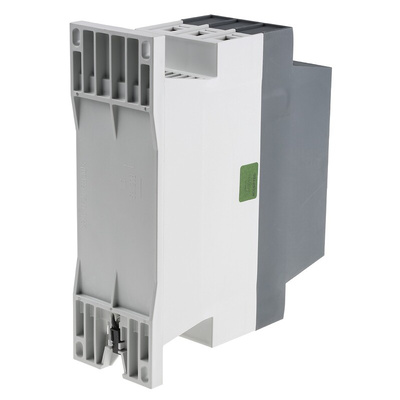

• Optional screw or DIN rail mounting to best suit your application's needs
• LED indicators for quick and convenient visual status identification
• 3 potentiometers for simple manual setting of the device
• Compatible with demanding environments, thanks to a wide operating temperature range of -25ºC to +60ºC
• Can handle up to 100 starts per hour for reliable performance

Applications

• Mining and mineral processing
• Pumps and fans
• Conveyors
• Compressors

Can I operate this soft starter remotely?

Yes, you have the option of controlling this soft starter remotely using an external keypad or over your fieldbus network.
