MTL5544/RS, Eaton 2 Channel Zener Barrier, Repeater power supply, Current Input, Current Output, ATEX

Intrinsic Safety Interface Units - Eaton MTL 5500 Series

The MTL5500 Series is the latest generation of MTL intrinsic safety isolators designed to meet the needs of the intrinsic safety (IS) interface market for application focussed projects, from single instrument loops to fully equipped cabinets. Incorporating advanced circuit design and innovative isolating transformer construction these isolators offer explosion protection and help protect electrical signals in hazardous areas ensuring a safe working environment.

DIN-rail mounting and plug-in signal and power connectors simplify installation and maintenance. These IS units are powered from a 20 to 35 V dc supply voltage, or, in some cases, from the signal itself.

The compact 16mm wide design reduces weight and gives a cost-effective high packing density and reduction in power consumption. A wide range of module options includes both single and multiple channel isolation barrier devices. They build on the success of the MTL5000 series to bring the benefits of galvanic isolators with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA

Features and Benefits

3-Port Isolation
High Packing density - Low power dissipation
Multi-channel I/O modules
Compatible with preceding MTL5000 series
Assessed for Functional safety IEC61508 applications
Required EX numbers and information displayed on the cover where applicable

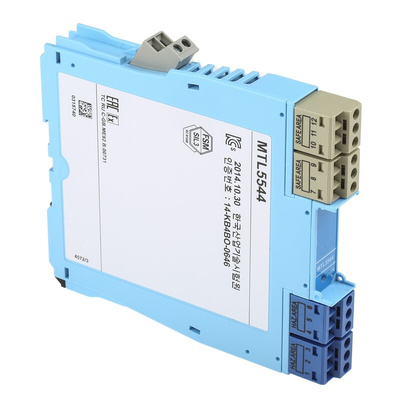

Eaton MTL Zener Barrier, 28V, 2 Channels - MTL5500 Series - MTL5544

Use this zener barrier from Eaton's MTL range to direct energy safely from hazardous areas to safe zones. This component is a multi-channel device, so it can provide signals for up to two signal loads in low-risk zones. It's energy-efficient, consuming just 96mA (milliamperes) of current at 24V DC (direct current) and dissipating up to 1.4W of power. This component has a green light-emitting diode (LED) indicator that tells you when it's powered up. It's suitable for control and instrumentation systems where it's used to process standardised signals.

Features & Benefits

• Backward compatible with legacy barriers in the MTL5000 range for versatility
• HART (highway addressable remote transducer) communication supported for easy interfacing with programmable logic controllers (PLCs)
• Compact dimensions to fit into setups with limited space
• Rugged construction, suitable for use in hazardous locations

How does this zener barrier work?

This zener barrier allows cables to short circuit to each other or to metallic parts connected to an earth without danger. Its resistor limits the incoming current, Zener diodes re-channel the excess voltage to the ground and fuses offer protection from short circuits.

Note

Eaton formerly known as MTL
