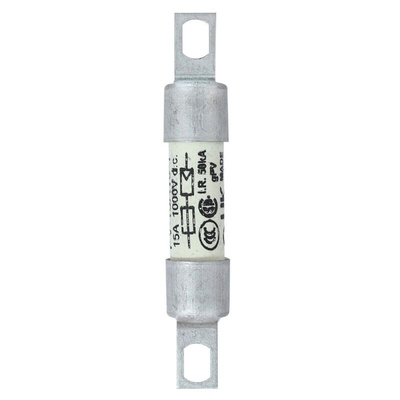

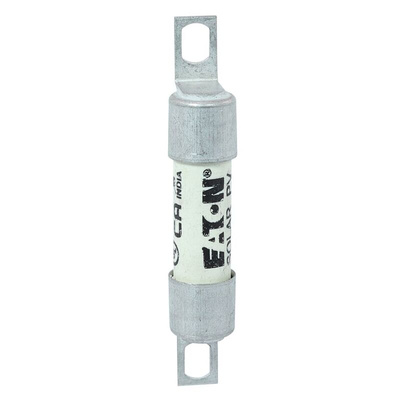

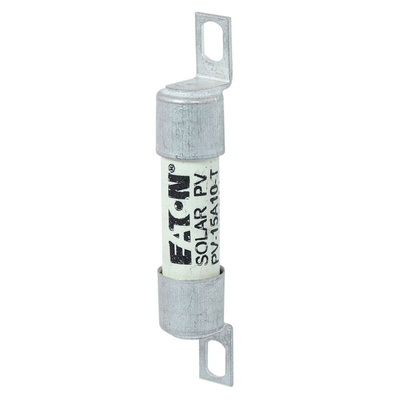

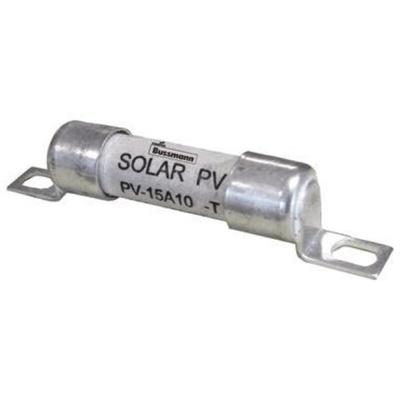

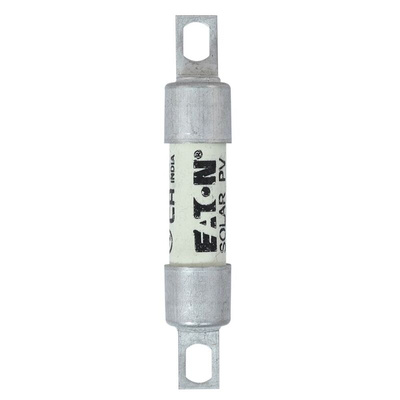

PV-15A10-T, Eaton 15A Bolt Fixing Photovoltaic Fuse, 1000V dc, 49.7mm

Eaton Bolt-Fixing Photovoltaic Fuse, Offset Tag Orientation, 1 to 3ms Time Constant - PV-15A10-T

Boost safety conditions in your solar power system with this bolt-fixing photovoltaic fuse from Eaton. It's designed for use with a photovoltaic string that's prone to low-current overloads. Mounting the unit takes just a jiffy – simply bolt the lugs to a fuse holder in your panel. When it senses conditions such as reverse current and multi-array fault in a PV string, the unit steps in to sacrifice itself and break the circuit. You can use a fuse like this one to support electrical safety in domestic and industrial arrays.

Features & Benefits

• Current rating of 15A to withstand high-power electrical systems
• Lugs are pre-cut for convenience
• Ceramic body delivers thermal stability to prevent overheating
• Breaking capacity of 50kA for durability against high levels of fault currents

What is a photovoltaic string?

A photovoltaic string is a system made up of multiple interconnected solar panels that work together to produce high-voltage outputs.

What's the response time of this fuse?

With a quick time constant between 1 and 3ms, the component will rapidly respond to hazards in your system, which prevents damage to downstream equipment.

Note

Eaton formerly known as Bussmann
