C10G32, Eaton 32A Ceramic Cartridge Fuse, 10 x 38mm, Предохранитель

Eaton IEC Cylindrical Fuses

The Eaton range of cartridge fuses is available for domestic electrical applications, from circuit breakers to plugs and sockets. These ceramic fuses are also available with an optional visual indicator.

What material are these made from?

All series of cylindrical fuse links have ceramic bodies and silverplated copper end caps.

Why choose ceramic cartridge fuse?

Ceramic and glass cartridge fuses have similar properties. The capacity of a ceramic cartridge fuse is higher than other fuses, which means that ceramic fuses can be used in circuits that have a higher current rating. They are perfect for protecting against overheating.

What size is it?

Sizes 8 x 32 mm, 10 x 38 mm, 14x51 mm & 22x58 mm in both Class gL-gG and aM are also available with a built-in striker for micro-switch operation and remote indication. Class gL-gG and aM fuse links are intended for industrial applications. All industrial fuse links are available with an operated visible fuse indicator.

What voltage is it?

This range of cylindrical cartridge fuses is available in a wide selection of physical sizes and current ratings for applications where the system voltage rating is 400, 500 and 690 Volts AC.


What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or breaking. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit.

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

What is an overcurrent?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

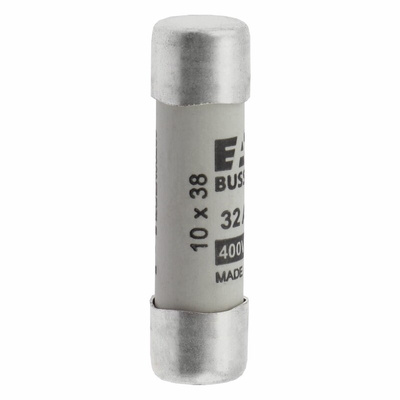

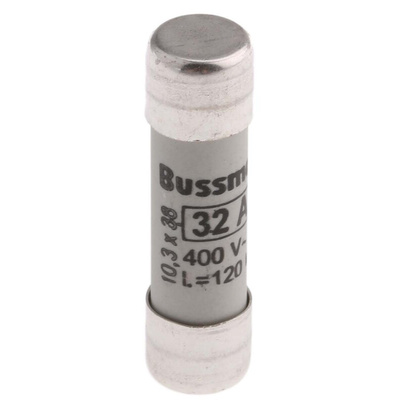

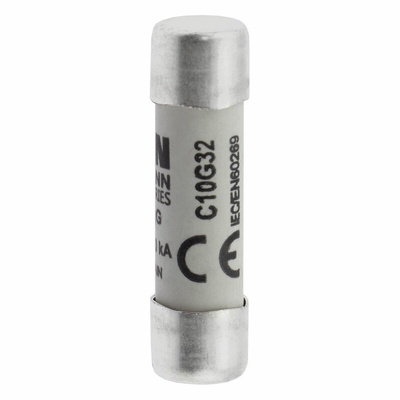

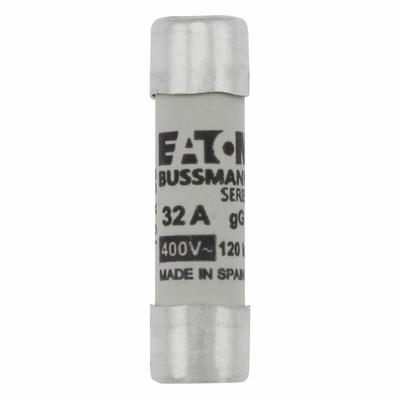

Eaton Ceramic Cartridge Fuse, 10mm Diameter, 50A - C10G32

Looking for a simple overcurrent solution for your domestic electrical appliances? This compact cartridge fuse from Eaton has a wire filament that melts when a fault occurs to quickly cut off power. This protects you and your equipment from the risks of short circuits and overcurrents. Its ceramic body has a high thermal capacity that enhances safety by preventing overheating. The fuse is easy to install as it clips simply onto a fuse holder without the need for tools. Its 400V AC (alternating current) rating makes it suitable for a variety of low-voltage applications such as circuit breakers and wall sockets.

Features & Benefits

• Light weight of 8.2g for easy handling and minimal system strain
• High breaking capacity of 120kA for safe operation in heavy-duty applications
• Standard dimensions of 10 (diameter) x 38mm (length) for space efficiency in small enclosures

What's the difference between glass cartridge fuses and ceramic fuses?

Glass cartridge fuses are typically used in low-heat applications as they have low thermal stability and will shatter at high temperatures. Ceramic fuses, on the other hand, are more thermally stable and operate reliably in high-heat conditions.

Note

Eaton formerly known as Bussmann
