C14G50, Eaton 50A Ceramic Cartridge Fuse, 14 x 51mm, Предохранитель

Eaton IEC Cylindrical Fuses

The Eaton range of cartridge fuses is available for domestic electrical applications, from circuit breakers to plugs and sockets. These ceramic fuses are also available with an optional visual indicator.

What material are these made from?

All series of cylindrical fuse links have ceramic bodies and silverplated copper end caps.

Why choose ceramic cartridge fuse?

Ceramic and glass cartridge fuses have similar properties. The capacity of a ceramic cartridge fuse is higher than other fuses, which means that ceramic fuses can be used in circuits that have a higher current rating. They are perfect for protecting against overheating.

What size is it?

Sizes 8 x 32 mm, 10 x 38 mm, 14x51 mm & 22x58 mm in both Class gL-gG and aM are also available with a built-in striker for micro-switch operation and remote indication. Class gL-gG and aM fuse links are intended for industrial applications. All industrial fuse links are available with an operated visible fuse indicator.

What voltage is it?

This range of cylindrical cartridge fuses is available in a wide selection of physical sizes and current ratings for applications where the system voltage rating is 400, 500 and 690 Volts AC.


What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or breaking. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit.

What are cartridge fuses used for?

• For the protection of components and equipment from costly damage used by over-current
• To isolate sub-systems from the main system once a fault has appeared

What is an overcurrent?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

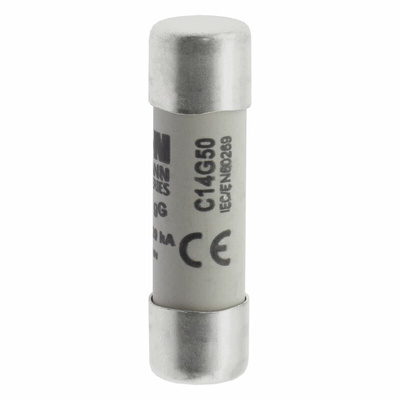

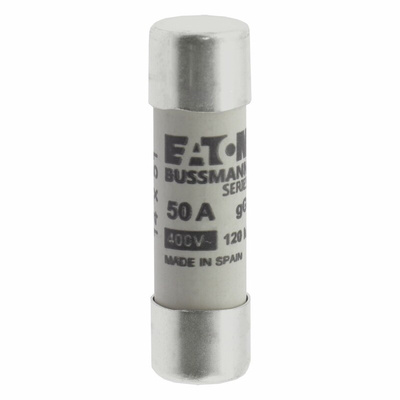

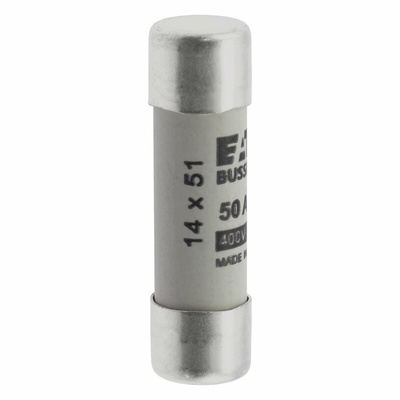

Eaton Ceramic Cartridge Fuse, 14mm Diameter, 50A - Eaton Series - C14G50

To protect your appliances from short circuits and overcurrents, turn to this Eaton cartridge fuse. It's a safety device that works by cutting off the power to a circuit when a fault occurs before it causes damage to people or equipment. As a sacrificial device, it's designed to fail when a fault occurs. With a breaking capacity of 120kA, this component has a high threshold for current spikes and will operate safely without arcing. It has conductive copper contacts for a reliable connection. A 400V AC (alternating current) rating makes it a good fit for low-voltage applications such as distribution boards and circuit breakers.

Features & Benefits

• Silver contact plating for corrosion resistance
• Compact dimensions of 14 (diameter) x 51mm (length) for space efficiency in small enclosures
• Ceramic body provides thermal resistance to prevent overheating

What's the difference between a circuit breaker and a fuse?

The difference is you can reset a circuit breaker for reuse after a fault. A fuse, on the other hand, needs replacing immediately once it has blown.

Can I replace a circuit breaker with a fuse?

Generally speaking, you can't simply replace a circuit breaker with a fuse. This is because a fuse doesn't offer effective protection for three-phase circuits.

Note

Eaton formerly known as Bussmann

Transition to Bussmann Series
