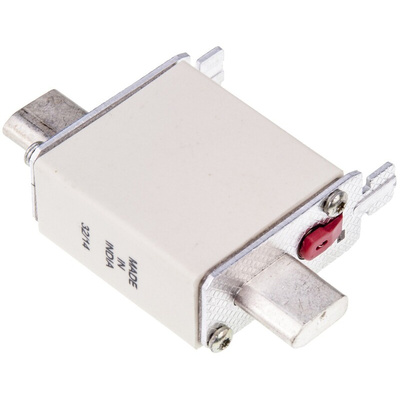

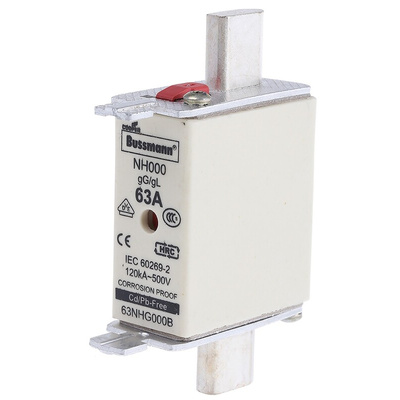

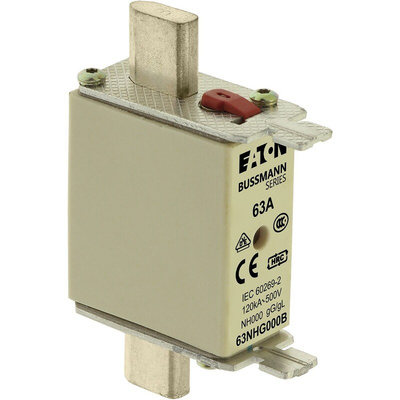

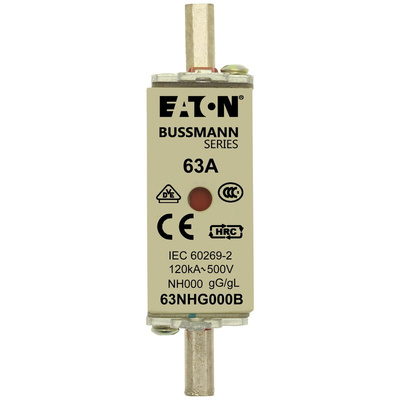

63NHG000B, Eaton 63A Centred Tag Fuse, NH000, 500V ac

Eaton Centred Tag Fuse, High Rupture Capacity, 6mm Tag Width - 63NHG000B

To blow off the risk of equipment damage caused by electrical spikes, reach for this centred tag fuse from Eaton. A high rupturing capacity means it clears both high and low current faults, offering all-around protection to your system. Installation is snappy thanks to centred tags that make the unit quick and easy to mount onto a fuse holder. A dual-indicator design keeps you constantly in the loop, as you can back up visual status checks with remote surveillance using a microswitch. This fuse teams up well with protective devices used in lighting and power supply applications.

• Fully recyclable for a light carbon footprint
• Meets IEC 60269 safety standards for low-voltage power fuses for the protection of battery systems
• Corrosion-resistant aluminium end plates, making it compatible with humid settings
• Silver-plated brass contact blades for optimal electrical flow in normal conditions
• Compact body dimensions of 54 (L) x 21 (W) x 41mm (H), so needs minimal installation space

How often do I need to replace this fuse?

There's no risk of it deteriorating over time, so you only need to replace this fuse if it blows.

Note

Eaton formerly known as Bussmann

NH DIN Dual Indication Fuse Links Data Sheet

Datasheet

Transition to Bussmann Series

Catalogue - Circuit Protection
