100NHG000B, Eaton 100A Tag Fuse, NH000, 500V ac

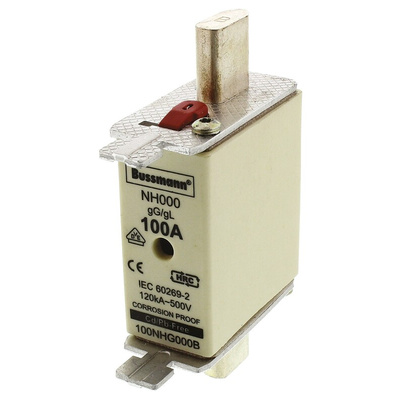

Bussmann NH Fuses Type gG/gL, Size 000

Bussmann NH fuses are square bodied industrial fuses that are suitable for a wide range of applications. Designed with a Steatite insulator and corrosion resistant aluminium end plates Bussmann NH fuses are ideal protection when used in conjunction with DIN rail fuse holders.

High breaking capacity
Dual Indication

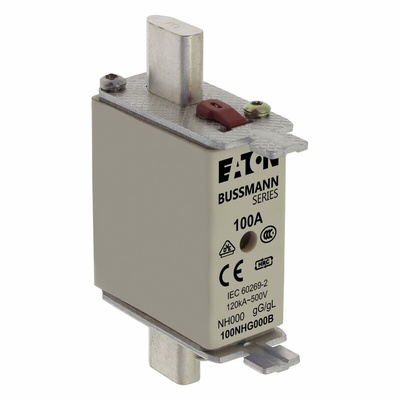

Eaton Centred Tag Fuse, 000 Size, 100A - 100NHG000B

Use this centred tag fuse from the Eaton range to protect your industrial equipment from short circuits and overcurrents. This fuse is a general-purpose type commonly used to safeguard conductors. Its ceramic casing provides thermal resistance to prevent overheating. The fuse also has a metal-plated copper terminal on each end for a reliable connection. This component has a status indicator, so it's easy to spot any faults for quick replacement. Its 500V AC (alternating current) rating makes it suitable for use in low-voltage applications such as microswitches, electrical substations and motors.

Features & Benefits

• Light weight of 130g for easy handling
• Compact dimensions of 41 (H) x 54 (L) x 21mm (W) for space efficiency
• Simple DIN rail mounting style saves time
• High rupture capacity to withstand current spikes for consistent performance

Does this fuse need any maintenance?

This fuse doesn't need maintenance, but as it's a one-time-use device, you need to replace it when it blows.

What's a centred tag fuse?

A centred tag fuse is one that has centralised mounting bladed tags at each end. These allow easy installation into open fuse bases on industrial electrical circuits.

Note

Eaton formerly known as Bussmann
