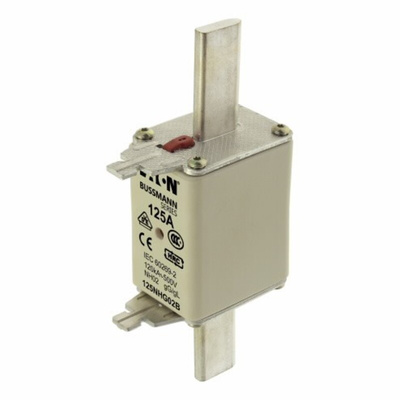

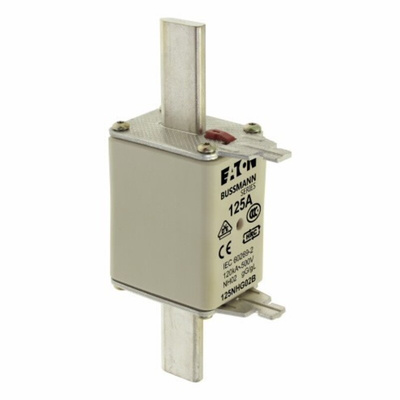

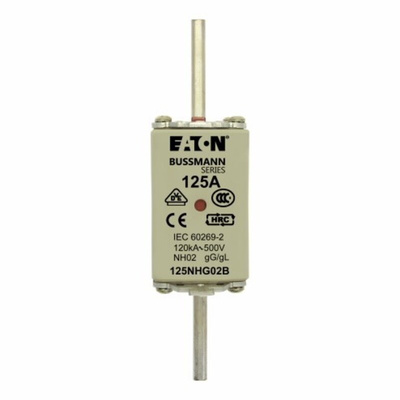

125NHG02B, Eaton 125A Centred Tag Fuse, NH02, 500V ac

Eaton Centred Tag Fuse, 120kA Breaking Capacity, 500V AC Voltage Rating 125NHG02B

Use this centred tag fuse from Eaton to protect components on your distribution boards from short circuits and overload faults. The steatite housing is tough and non-flammable, so can be safely used in electrical installations. As this material also has a high thermal tolerance, it's suitable for very hot environments. A high breaking capacity of 120kA means this fuse reliably protects your equipment from short circuits in volatile areas without causing an arc or fire. You'll find it useful for protecting your cables in electricity distribution systems.

Features & Benefits

• Compact dimensions of 75 (L) x 52 (W) x 53mm (H) for installation in setups with limited space
• Low power loss of 12.5W for energy efficiency
• 100% recyclable parts make it sustainable

What's the difference between a fuse and a circuit breaker?

The major difference between a fuse and a circuit breaker is that a fuse can only be used once, while a circuit breaker can be reset and reused. Fuses also generally work faster than circuit breakers.

Note

Eaton formerly known as Bussmann
