RS PRO Panel Mount Indicator, 12V dc, 14mm Mounting Hole Size, Solder Tab Termination, IP67, Индикатор

RS PRO Green, Red, Yellow Indicator, 12 V DC, 14 mm Mounting Hole Size, Solder Tab Termination, IP67

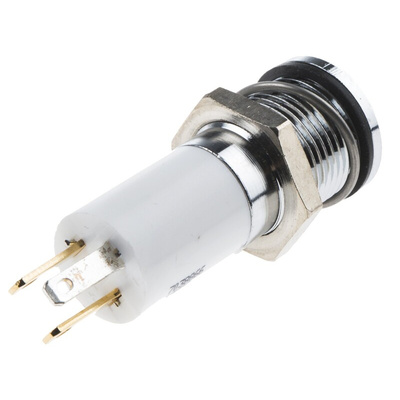

Use this tri-colour LED indicator from RS PRO to signal the status of applications on your electronics and industrial equipment. It can switch between red, green and yellow-coloured light. The indicator comes with solder tab-type terminals, so you can fix it onto printed circuit boards (PCBs) and pin strips easily.

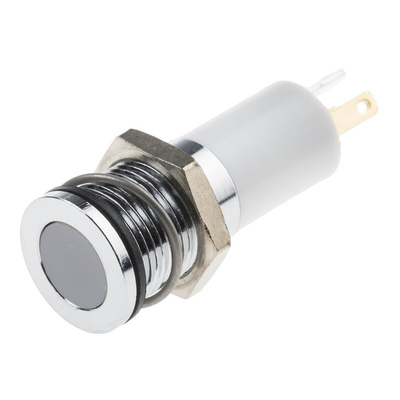

A chrome-finished bezel contrasts with the LED light so you can see it clearly from long distances and wide viewing angles. For easy and secure mounting, it's supplied with a fixing nut and spring washer. An IP67 rating ensures protection from dust and submersion in water.
This indicator is suitable for use at temperatures between -40°C and +85°C, so it's safe in harsh industrial settings. It's typically found in medical devices, mechanical equipment and process control systems.

Features and Benefits

• Current rating of 20 mA
• Length of 35.6 mm
• Lamp size of 10 mm
• Mounting hole size of 14 mm
• Voltage rating of 12 V DC
• Maximum panel thickness of 11 mm
