RS PRO Panel Mount Indicator, 24V dc, 14mm Mounting Hole Size, Solder Tab Termination, IP67, Индикатор

RS PRO Green, Red, Yellow Indicator, 24 V DC, 14 mm Mounting Hole Size, Solder Tab Termination, IP67

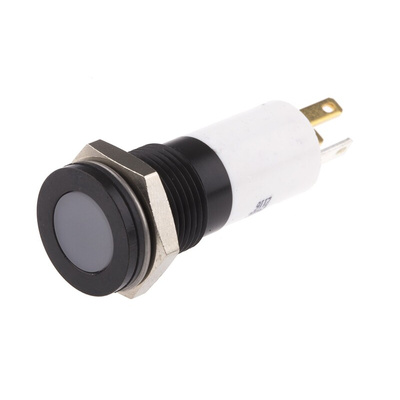

This tri-colour LED indicator from the RS PRO range switches between red, green and yellow-coloured light to signal the status of electronics and industrial equipment. Its solder tab-type terminals mean you can easily fix it onto pin strips and printed circuit boards (PCBs).


The indicator has a flush bezel with a black chrome finish that contrasts with the LED light, making it easy to see from wide viewing angles and long distances. It's supplied with a spring washer and fixing nut for fast and secure mounting. The unit's IP67 rating means it's protected from dust and submersion in water.


You can use this indicator at temperatures ranging from -40°C to +85°C, so it's a good choice for tough industrial environments. It's commonly used in mechanical equipment, medical devices and process control systems.

Features and Benefits

• Current rating of 20 mA


• Length of 35.6 mm


• Lamp size of 10 mm


• Mounting hole size of 14 mm


• Voltage rating of 24 V DC


• Maximum panel thickness of 11 mm

EC Declaration of Conformity

RS Pro Datasheet
