3842541181, Bosch Rexroth M6 Cross Connector Connecting Component, Strut Profile 28 mm, Groove Size D28mm

Bosch Rexroth Connecting Component, Cross Connector Type, Die Cast Zinc Body - MGE Series - 3842541181

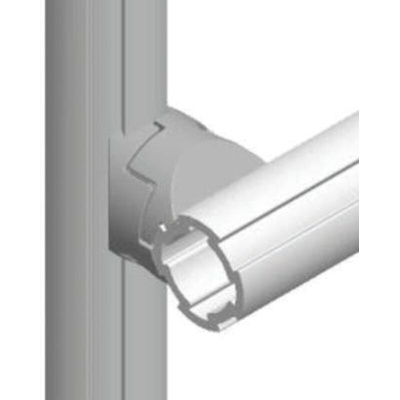

Bridge the gap between your EcoShape tubes with this connecting component from Bosch Rexroth. As a T-shaped cross-connector, it holds two tubes perpendicular to one another to form shelves and support beams. It does this by latching onto the 28mm thread of one tube while fitting around the second like a sleeve. This component simplifies assembly so you can build complex storage units and transport shuttles without a hitch.

Features & Benefits

• Anti-torsion design secures joints in place and prevents wobbling
• Diecast zinc is resistant to corrosion for long-term use
• Silver colour matches tubing for a uniform finish

Applications

• Storage units
• Distribution centres
• Packaging industry
• Retail sector

What tubes is this connector compatible with?

It's compatible with all round tubes from the EcoSafe range, including D28L (703-9698) and N10 (703-9705) struts.

EcoShape System

EcoShape is a simple, strong, flexible, cost-effective, versatile system that enables the user to configure simple or complex structures with a limited number of components. EcoShape is quick and easy to install, with smart connection technology allowing on-site adjustments to be made at any time.

T-slot configuration allows integration with the Bosch Rexroth modular aluminium frame system and manual production system
Quick and simple installation
Enables the end user to make custom workstations, material handling equipment and flow racks, etc.
