3842541193, Bosch Rexroth M8 Tube Clip Connecting Component, Strut Profile 28 mm, Groove Size D28mm

Bosch Rexroth Connecting Component, Tube Clip Connector Type, 30° Maximum Oblique Positioning Angle - MGE Series - 3842541193

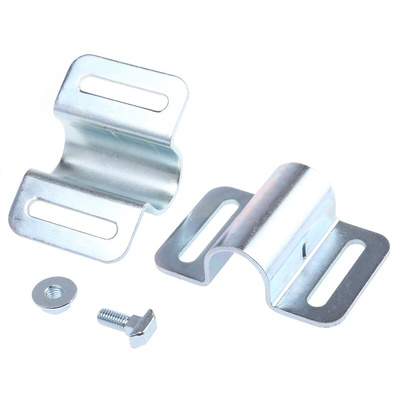

Need to fit extra shelves to your modular structure? Secure them with this Bosch Rexroth connecting component. It's a tube clip that attaches to a 28mm diameter aluminium round tube (703-9692), so it's ideal for building sturdy structures. To give you flexibility in your build, it handles oblique positioning up 30°. Thanks to the clip's resilient galvanised steel body, you can trust it to stand up to knocks and rough handling.

Features & Benefits

• ESD-safe, so protects sensitive electronic components from harmful static discharge
• Comes in a bag of 4 to see you through your job

Applications

• Automated production lines
• Manufacturing industry
• Retail units

How do I fit this connector to my structure?

It simply screws into your tube's groove slot using the supplied fasteners, so it's ready to mount without extra parts.

EcoShape System

EcoShape is a simple, strong, flexible, cost-effective, versatile system that enables the user to configure simple or complex structures with a limited number of components. EcoShape is quick and easy to install, with smart connection technology allowing on-site adjustments to be made at any time.

T-slot configuration allows integration with the Bosch Rexroth modular aluminium frame system and manual production system
Quick and simple installation
Enables the end user to make custom workstations, material handling equipment and flow racks, etc.

EcoShape TheTubular Framing System Customer Presentation

Datasheet

Catalogue - Basic Mechanic Elements
