6.908.0100.0A0, Kübler CODIX 908 Counter, 12 Digit, 5kHz, 230 V ac, Счетчик

LCD Preset Counter - Codix 907 / 908

Pulse, time, position, adding and subtracting functions
Menu driven programming
Decade keypad, for each digit one key
2 x 6 digit display with preset annunciators
Display from -999999 up to +999999
Max switching voltage: 250 Vac / 110 Vdc
Max switching current: 3 A ac/dc
max switching capacity: 750 VA / 90 W
High protection rating (IP65)

Kubler Counter

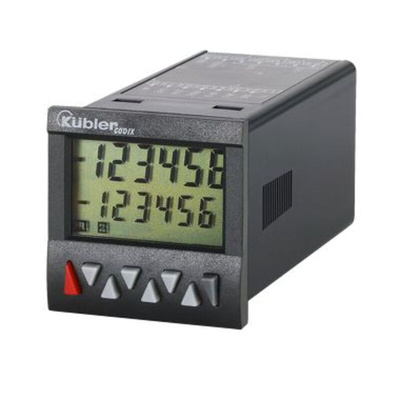

The Kubler CODIX 907 series digital counter is a 12-digit, LCD multifunctional display, single preset and panel mount device. It has a supply voltage rating ranging between 10VDC and 30VDC. It supports pulse, time, position, adding and subtracting function.
This counter has a maximum count frequency of 5KHz.


Kubler panel mounting is 48mm x 48mm - Electronic counters
Range of resettable counters/timers/rate meters. All of them have 45 x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention is greater than 10 years.

Features and Benefits

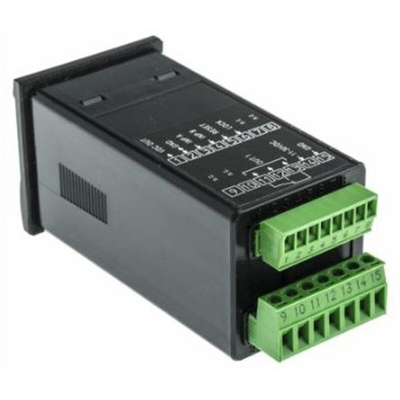

Plug-in screw terminals
Menu-driven programming
Decade keypad
Bi-directional counting
Display ranges between -999999 and 999999
LCD display with pre-indicators
Automatic reset by key-press or electrically
Operating temperature ranges between -10°C and 50°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated

Kubler Panel Mounting 48 x 48 - Electronic Counters

Range of Resettable Counters / Timers / Rate Meters. All have 45 x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention greater than 10 years.

Codex 908 programming instructions

Operating Instructions

Datasheet - 6.908.0100.0A0
