6.560.010.000, Kübler CODIX 560 Counter, 6 Digit, 65kHz, 90 → 260 V ac, Счетчик

Kubler Digital Counter

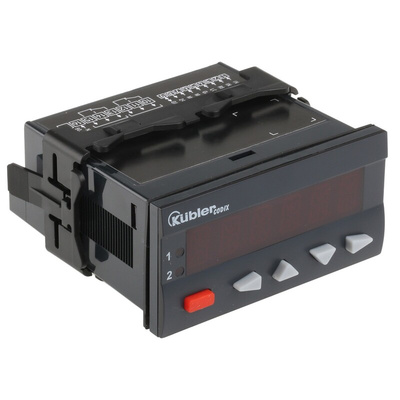

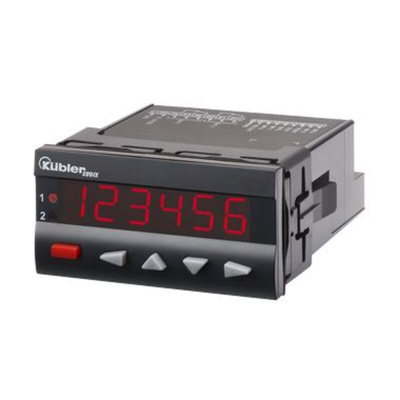

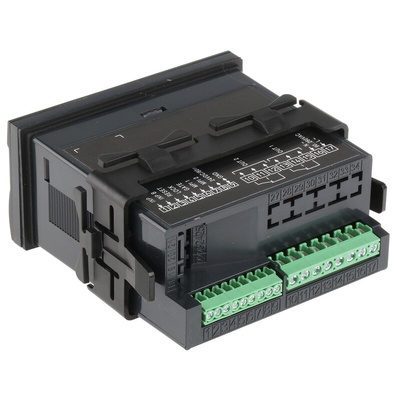

The Kubler CODIX 560 series digital counter is a 6-digit, dual preset, LED display, multifunction counter as a tachometer, timer and position display all-in-one device. It has a voltage rating ranges between 90VAC and 260VAC. The 14 LED segments ensure easy reading even from a long distance and in poor lighting conditions. The large user-friendly front keys can be operated even when wearing gloves. This product can be used as a preset counter, batch counter or totalizer with up to 6 presets. It can solve a wide variety of control and monitoring tasks in every application. This counter has a maximum count frequency of 60KHz.

Features and Benefits

Scalable display and set value
Front Dimensions 96mm x 48mm
Tracking presets eliminate the need for reprogramming of the pre-signal
Status display of the presets
3 predefined parameters
4-stage RESET modes and 3-stage keypad locking
Suitable for installation in mosaic systems
Many different count modes
Flying lead connection type
Operating temperature ranges between -20°C and 65°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated
EN 55011 class B
EN 61000-6-2
