6.140.012.300, Kübler CODIX 140 Counter, 7 Digit, 8kHz, 10 → 30 V dc, Счетчик

Kubler Counter

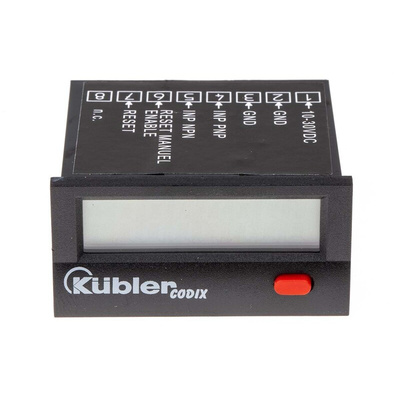

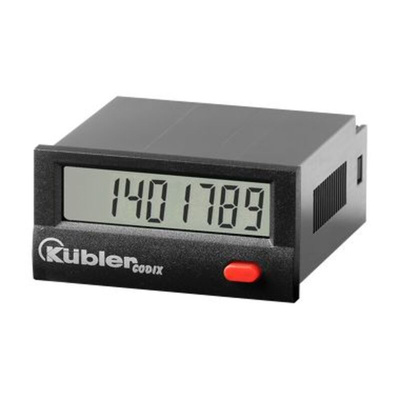

The Kubler CODIX 140 series digital counter is a 7-digit LCD display designed for NPN/PNP input signal panel mount pulse counter. It has a supply voltage rating ranging between 10VDC and 30VDC. It has a multifunction reset key, lockable via a separate input. This counter has a maximum count frequency of 8KHz.

Features and Benefits

Direct display of the total number of pulses
Key press displays preset service value and its pre-signal
Preset value output as display text and transistor output
Pre-signal for the service intervals as display text
Manual or electrical reset of the display or of the service intervals
Fast PNP or damped NPN control via separate inputs
Counting range is between 0 to 9999999, no decimal point
Front dimensions is 48mm x 24mm

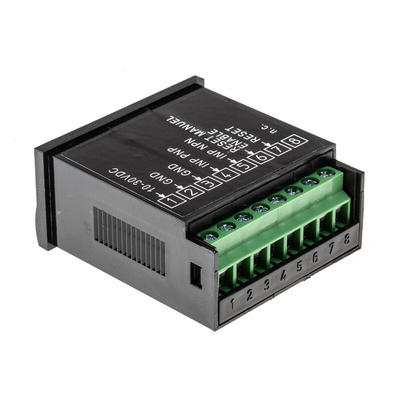

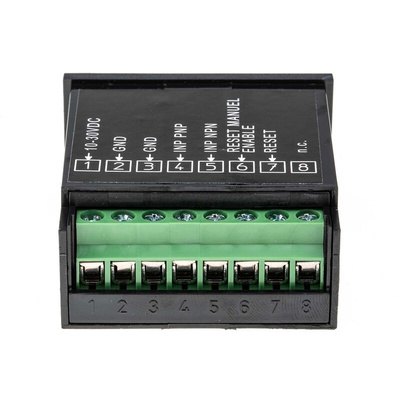

Plug-in screw terminals
Operating temperature ranges between -20°C and 65°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated
EN 55011 class B
EN 61000-6-2
