0 772 131, Hengstler TICO 772, 6 Digit, LCD, Counter, 60kHz, 230 V ac, Счетчик

Hengstler Counter

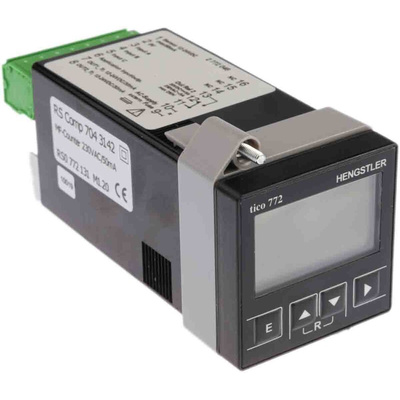

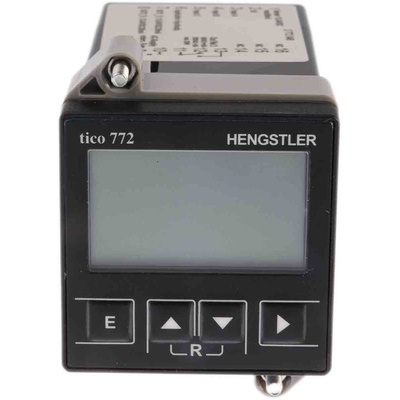

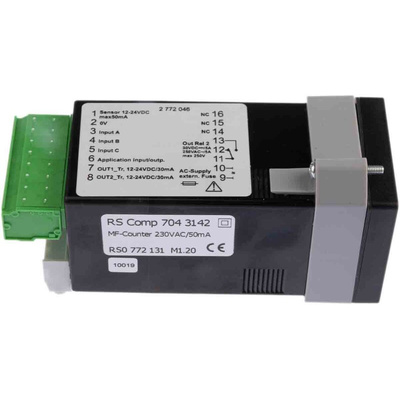

The Hengstler TICO 772 series digital counter is a three preset multifunctional panel mount counter that includes a tachometer, timer, shift counter and batch counter. It has a 6-digit LCD display and display and preset range of -999,999 to +999,999. This counter has voltage input and relay output. It has a voltage rating of 230VAC. It is easy to program, 4 keys to directly address presets, prescaler and separate totalizer. This counter has a maximum count frequency of 60KHz.

Note:
The highest count frequency of 60KHz can only be reached at a special calibration and parameter, this is otherwise quoted at 30KHz.

Features and Benefits

Easy to operate
Maximum count frequency is 60KHz
Four different backlight colours
Intensity of backlighting can now be adjusted
Large, clearly readable
Front dimensions is 48mm x 48mm
Display and preset ranges between -999999 to 999999
Easy installation via plug-in terminals
Relay outputs
Alarm signal displays flashes when preset 0, 1 or 2 are active
Operating temperature ranges between 0°C and 50°C

Applications

Time controlling
Position indication
Batch counting
Cutting to length
Rotation speed controlling

Certifications

IP65 rated
EN 61 010-1/IEC 61010-1
UL approved
CSA certified

Datasheet
