XVC6B35SK, Schneider Electric Harmony XVC6 Series Red/Green/Amber Buzzer Signal Tower, 3 Lights, 24 V ac/dc, Surface Mount, Сигнальная колонна

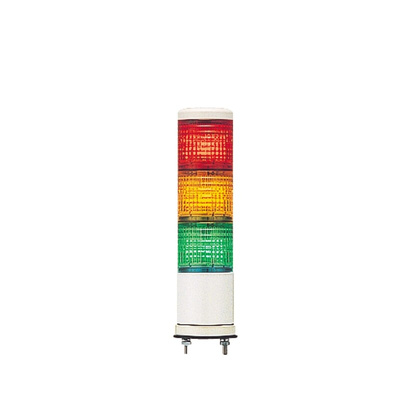

Schneider XVC6 Pre-Configured Signal Tower

The Schneider XVC6 series is a monolithic pre-cabled signal tower designed for semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector.

60mm diameter, suitable for use in semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector
Steady or Flashing super-bright LED illumination
Flashing function can be selected by wiring

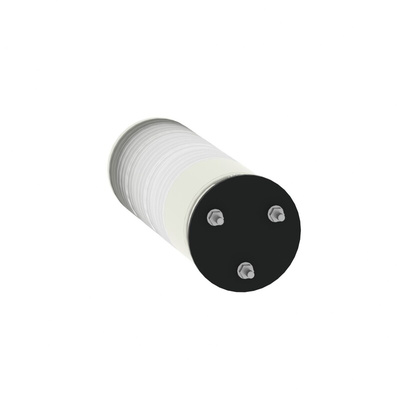

Base mounted or mounted on support tube with bracket

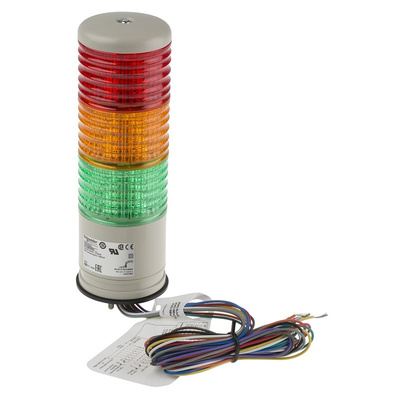

Pre-cabled, ready to use and install
Simple and safe fixing
For products equipped with a buzzer, the type of signal (continuous or intermittent) can be reversed by modifying the cable connections

Standards

EN/IEC 61000-6-2, EN/IEC 61000-6-3, EN/IEC 61000-6-4, Class I conforming to EN/IEC 61140.

Approvals

CE, UL, CSA, CCC and Gost in progress.

Schneider Electric Signal Tower, 60mm Base Diameter, AC/DC Supply Circuit Type - Harmony XVC6 Series - XVC6B35SK

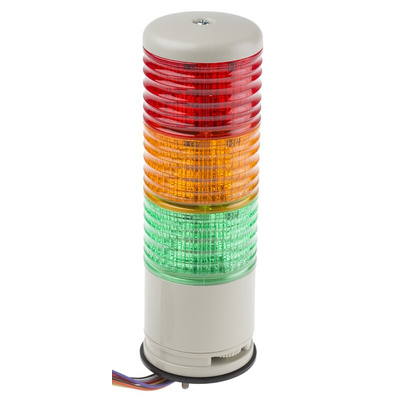

Send clear messages across your workplace with this signal tower from Schneider Electric. It combines red, orange and green LED sections, so you can inform your workforce about hazards or a machine's operational status. To make sure your message is heard as well as seen, a built-in buzzer produces 70 to 85dB at 1m as either a continuous or intermittent tone. An IP54 rating on this unit indicates that it's protected against water sprays from any direction when mounted on a flat surface, so you can use it in demanding industrial conditions.

• Steady or flashing LED settings let you customise your signals
• 115mA current consumption shows it's an energy-saving component
• Light net weight of 300g, so won't put strain on your setup
• ABS base is impact-resistant for protection against dings and bashes

Applications

• Warehouses and storage units
• Manufacturing plants
• Food and beverage processing

Does this tower handle harsh environments?

Thanks to its broad operating temperature range between -10°C and +50°C, this signal tower is a reliable choice for demanding work areas.

Signalling solutions Harmony XVC/R/S Catalogue

Datasheet - XVC6B35SK

Instruction Sheet - XVC6B35SK

Line Drawing - XVC6B35SK
