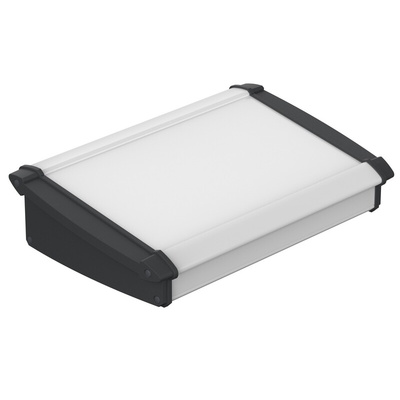

92865250.MT6, Bopla Alu-Topline (Set), Sloped Front, ABS, Aluminium, 250 x 181.2 x 68.2mm Desktop Enclosure, Black, Natural Anodised, Корпус

Bopla Alu-Topline Enclosures - Natural-Coloured Anodised, End-Covers Black

Introducing the Alu-Topline Enclosure series from Bopla. Theses desktop enclosures are designed to house electrical and electronic components in Industrial applications. They offer a split profile which provides easier and faster assembly of components and plastic end covers to complete the enclosure. Incorporated into the design is a recessed surface for mounting keypads, switches or various operating components.

Why would you buy these enclosures?

Bopla Alu-Topline enclosures are desktop enclosures, the perfect alternative to general purpose enclosures & Junction boxes for creating a control system. They have aluminium profiles equipped with slots and screwing channels to accept PCBs, mounting plates and a recessed membrane keypad area. The Alu-Topline series also has a range of accessories that can be purchased separately to complete your enclosure solution.

Features and Benefits

• Aluminium enclosure
• Natural-coloured anodised, End-cover black
• Slop front
• Recessed membrane keypad area
• Grooves mounts inside
• Horizontally-divided profiles
• Corrosion resistant
• Recyclable
• IP40/DIN EN 60529
• IP54 (Optional)

Enclosure Material
• Extruded profiles: Al Mg Si 0.5 anodised; plastic lid: ABS

Bopla Alu-Topline Enclosures Options

External Dimension Size
• 150 x 181.2 x 53.2 mm = RS stock no: 704-3931
• 200 x 181.2 x 53.2 mm = RS stock no: 704-3934
• 250 x 181.2 x 53.2 mm = RS stock no: 704-3938
• 250 x 181.2 x 68.2 mm = RS stock no: 704-3940
• 300 x 181.2 x 68.2 mm = RS stock no: 704-3944
• 200 x 181.2 x 68.2 mm = RS stock no: 704-3947

Typical Applications

• Cable/Wire Management
• IT/Server
• System Control
• Oil and Gas Production
• Food and Beverage Industry
• Telecommunication Industry

(IP) Ingress Protection and what it means

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

Bopla Alu-Topline Compatible Accessories

Gasket Seals for ingress protection IP 54
• Alu-Topline Seals = RS stock no: 704-3953 & 704-3956

Bopla Alu-Topline Mounting Kits

• Length: 150 mm; RS stock no: 704-3950
• Length: 244 mm; RS stock no: 704-3962
• Length: 294 mm; RS stock no: 704-3966
• Length: 194 mm; RS stock no: 704-3969

Insulating strip for PCB mounting = RS stock no: 704-3975
Enclosure Feet = RS stock no: 704-3978

FAQ’s

What is supplied?

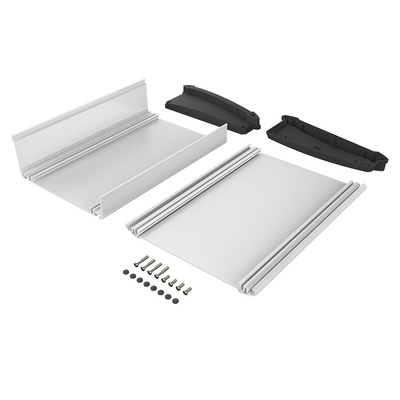

• Aluminium enclosure profile, 2 x end covers

Alu-Topline Console Drawing

Datasheet

92865250.MT6 Line Drawing
