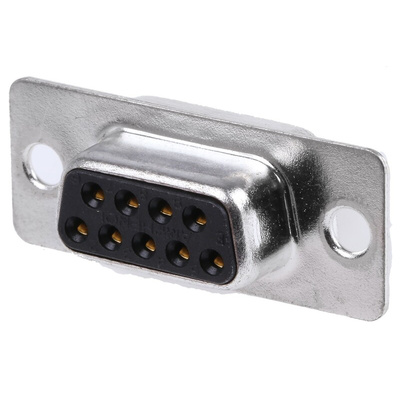

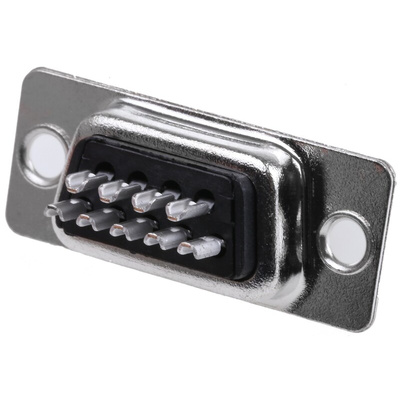

FCE17-E09SM-250, Amphenol ICC FCE17 9 Way Panel Mount D-sub Connector Socket, 2.74mm Pitch, Разъем

7047435
Номер производителя: FCE17-E09SM-250Производитель: Amphenol ICC
Цена за шт.
4863.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Amphenol Straight Solder Bucket Connectors

These Amphenol Filtered D-Sub FCE17 Series Straight Pin or Socket connectors are Panel mount with solder cup tails.

Filter Capacitance of 470 pF, 820 pF, 1000 pF or 5600 pF are available indicated by a 1, 4, 5 and 9 in the Manufacturers Part Number i.e. FCE17-*****-*X** respectively
Ø3 mm mounting holes with fixing centres of 25 mm, 33.3 mm, 47 mm or 63.5 mm for E09, A15, B25 and C37 sizes respectively
Solder bucket termination with Matte Tin Plating accepts wire up to 20 awg
Insulation Resistance 3000 MΩ
Contact Resistance 15 mΩ

Amphenol Filtered 'D' Connectors

These filtered connectors are compact interconnect devices that can filter unwanted EMI. The capacitors are mounted inside the connector between each of the contacts and the connector ground shell. They provide:

Better EMI Control – With minimized lead inductances and short, direct paths to ground of the filter, performance will typically out perform the same filter components on a P.C.B. by a factor of three to one
PCB Space Savings – Incorporating filter elements into the connector, enables simplification of the required filter schematic for the necessary performance plus a savings of 2-4 square inches
Cost Savings – Filter elements, such as inductors and capacitors, must no longer be purchased, stocked, assembled or tested. Fewer components means greater reliability at lower cost
Easy EMI/RFI Upgrade – These compact filtered connectors fit standard non-filtered connector footprints. For improved EMC performance, simply replace the existing connector with a filtered connector
EMC Compliance & Immunity – EMI that is generated from the electronic device, radiated or conducted, will be re-directed to chassis ground through the connector shell. This same device will also protect the system from external EMI/RFI noise (such as radio transmitters, ESD, or natural phenomena such as lightning) in the same way

Техническая спецификация
pdf9w Filter D, Solder cup,skt 1000pf
Глубина:
16.73мм
Длина:
30.81мм
Кол-во контактов:
9
Концевая заделка:
Припой
Материал контактов:
Фосфорная бронза
Материал корпуса:
Сталь
Номинал тока:
5.0A
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото над никелем
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-40.0°C
Размер оболочки D-Sub:
E
Размеры:
30.81 x 12.55 x 16.73мм
Род:
Female
Серия:
FCE17
Тип монтажа:
Крепление на панель
Тип разъема D:
Filtered D-Sub
Шаг:
2.74мм
Ширина:
12.55мм
