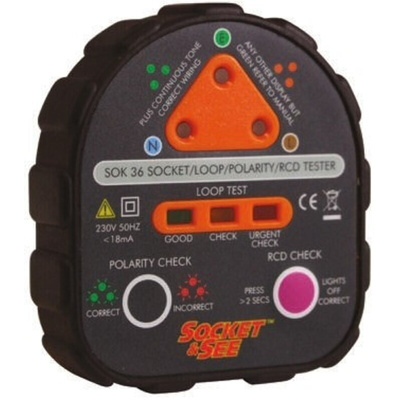

Socket & See, Model SOK 36 Socket Tester 13A 230V ac

SOK 36

With Non-Trip Earth Loop Impedance, Polarity & RCD check

Operational check of 30mA RCDs
Tests for total supply system polarity safety
Bright LED's indicators with logical `Green for Go` LED Indication
Detects good plus 17 wiring fault conditions
Clear indication of where the actual fault is - Live, Earth or Neutral
Continuous or strong warbling tone gives positive quick indication of good or faulty wiring
Colour LED read out shows earth loop impedance result as Good, Check or Urgent Check; Good when less than 1.8Ω
Built-in self check

Note

High sensitivity RCDs or excessive earth leakage currents may cause inadvertent tripping of the circuit during loop check. Always check prior to use where loss of supply may be hazardous or unacceptable.
This unit is an indicator only and is not designed to provide readings for completing certificates

Socket & See Professional Socket Tester

The Socket & See SOK 36 professional socket tester test for total supply system polarity safety. This device has a current rating of 13AC and detecting a voltage rating of 230VAC.
Note:
High sensitivity RCDs or excessive earth leakage currents may cause inadvertent tripping of the circuit during loop check. Always check before use where the loss of supply may be hazardous or unacceptable. This unit is an indicator only and is not designed to provide readings for completing certificates.

Features and Benefits

Operational check of 30mA RCDs
Detects 17 wiring conditions
Bright LED's indicators with logical green for go
A clear indication of where the actual fault is - live, earth or neutral
Continuous or strong warbling tone gives a positive quick indication of good or faulty wiring
Full earth loop test
Colour LED readout shows earth loop impedance result as good, check or urgent check, good when less than 1.8ohm
Self-check at start of testing gives confidence incorrect operation at all times
The compact design encourages more frequent socket safety checks
Type G-British 3-pin plug
Power supply from mains
Operating temperature ranges between 0°C and 40°C

Applications

Electrical systems
Commercial

Certifications

CE
BSEN 61010-1

SOK 32/34/36 Catalogue Page
