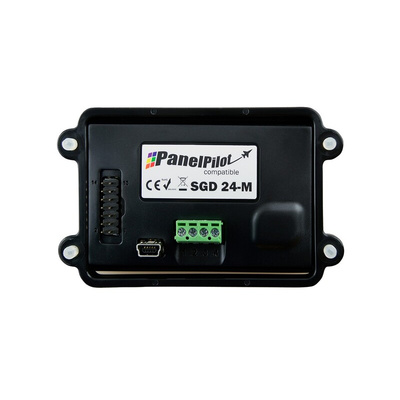

SGD 24-M, Lascar PanelPilot , LED Digital Panel Multi-Function Meter for Voltage, 46mm x 74mm, Многофункциональный измеритель

Lascar Smart Graphics Display

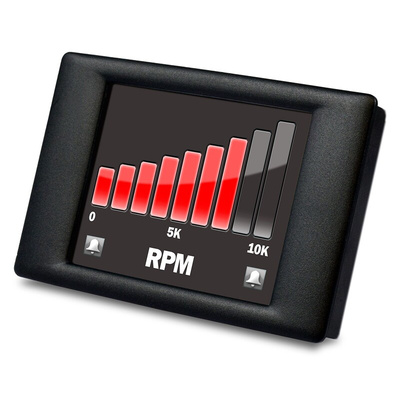

The Lascar PanelPilot series 2.4in smart graphics display has a 320 x 240 pixels(QVGA) colour display and USB programming interface. By using the PanelPilot software (available for Windows 7, 8.1 and 10), the user can choose from an increasing number of voltmeter types, that can be customised as per their needs. The user can customise the colours, text labels, splash screen and input voltage scaling through the software and upload to the meter with the help of the USB connection.
Note:
Free Windows-based configuration software downloadable from the web- compatible with Windows XP, 2000, Vista and Windows 7 (32/64 bit).

Features and Benefits

Voltage measurement ranges from 0VDC and 40VDC
Wide operating voltage of 4VDC to 30VDC
Accuracy is 0.05%
Use PanelPilot software, to setup and customise the display
Multiple voltmeter configurations included for free
pixels resolution TFT display with touch screen technology
Programmable via the USB interface
Simple panel mounting solution
Digital hold
Cut-out height of 46mm, width of 74mm and depth of 16.4mm
Operating temperature ranges between 0°C and 40°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE certified
